JWD-171-20

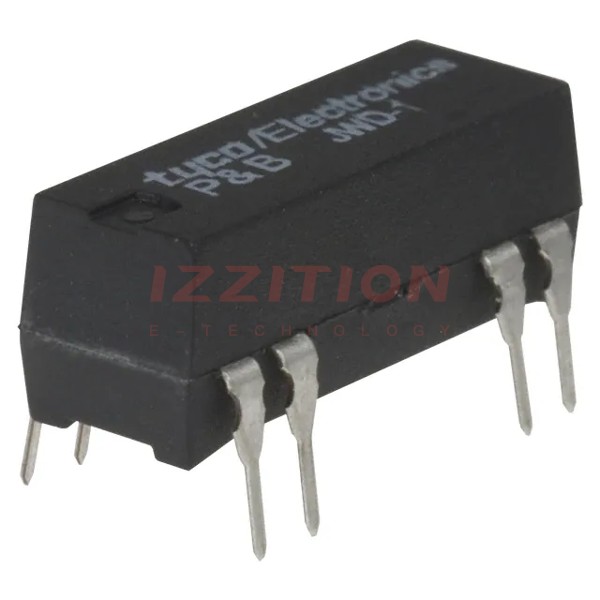

JWD-171-20 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays JWD-171-20
Manufacturer No:
JWD-171-20
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Tube
Datasheet:
JWD-171-20 Datasheet
ECAD Model:
-
Description:
RELAY REED SPST 500MA 24V
Delivery:
Payment:
Product Attributes
Mounting Type:
Through Hole
Coil Voltage:
24VDC
Contact Form:
SPST-NC (1 Form B)
Contact Rating (Current):
500 mA
Switching Voltage:
100VDC - Max
Coil Current:
10.9 mA
Coil Type:
Non Latching
Features:
Diode
Termination Style:
PC Pin
Seal Rating:
-
Must Operate Voltage:
19.2 VDC
Must Release Voltage:
2 VDC
Operate Time:
1.5 ms
Release Time:
0.5 ms
Operating Temperature:
-35°C ~ 85°C
Contact Material:
Ruthenium (Ru)
0
Remaining
View Similar
In Stock
UnitPrice:
-
Quantity:
468
