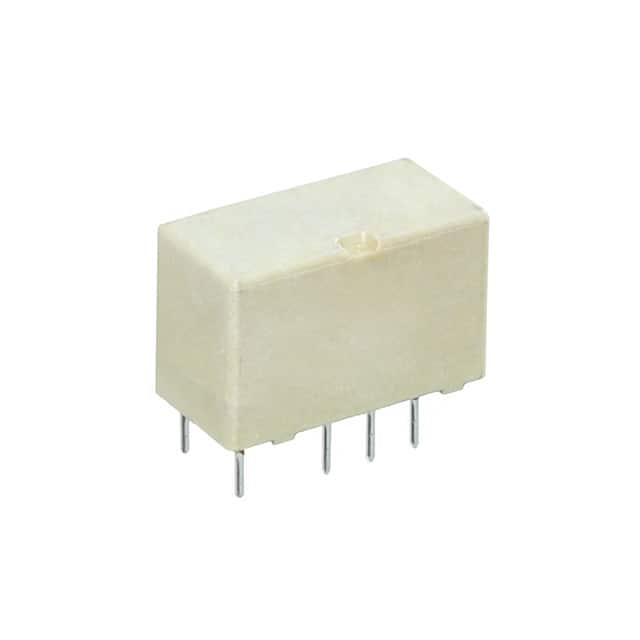

TE Connectivity Potter & Brumfield Relays-D3423 - Signal Relays, Up to 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Coil Voltage:	5VDC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	2 A
Switching Voltage:	250VAC, 220VDC - Max
Coil Current:	40 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	3.75 VDC
Must Release Voltage:	0.5 VDC
Operate Time:	5 ms
Release Time:	5 ms
Operating Temperature:	-55°C ~ 85°C
Contact Material:	Palladium (Pd), Ruthenium (Ru), Gold (Au)
Relay Type:	Telecom

TE Connectivity Potter & Brumfield Relays D3423
