TE Connectivity Potter & Brumfield Relays-D3002 - Signal Relays, Up to 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	2 A
Switching Voltage:	250VAC, 220VDC - Max
Coil Current:	11.7 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	8.4 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	4 ms
Release Time:	3 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Palladium (Pd), Ruthenium (Ru), Gold (Au)
Relay Type:	Telecom

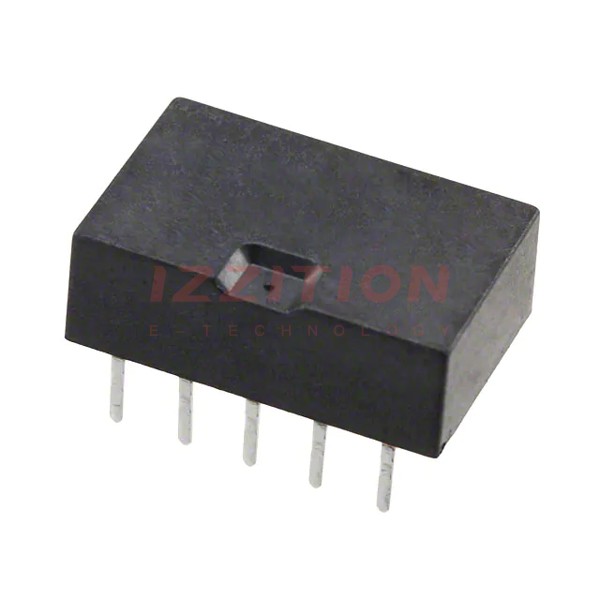

TE Connectivity Potter & Brumfield Relays D3002
