9-1415513-1

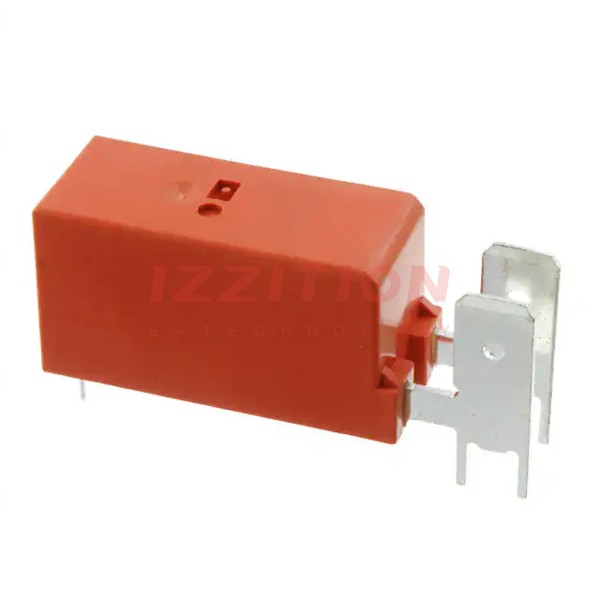

9-1415513-1 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity Potter & Brumfield Relays 9-1415513-1
Manufacturer No:
9-1415513-1
Manufacturer:
TE Connectivity Potter & Brumfield Relays
Package:
Tray
Datasheet:
9-1415513-1 Datasheet
ECAD Model:
-
Description:
RELAY GEN PURPOSE SPST 16A 24V
Delivery:
Payment:
Product Attributes
Mounting Type:
Through Hole
Coil Voltage:
24VDC
Contact Form:
SPST-NO (1 Form A)
Contact Rating (Current):
16 A
Switching Voltage:
400VAC - Max
Coil Current:
16.7 mA
Coil Type:
Non Latching
Features:
-
Termination Style:
PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:
Sealed - Flux Protection
Coil Insulation:
Class F
Must Operate Voltage:
16.8 VDC
Must Release Voltage:
2.4 VDC
Operate Time:
11 ms
Release Time:
7 ms
Operating Temperature:
-40°C ~ 85°C
Contact Material:
Silver Nickel (AgNi)
Relay Type:
General Purpose
0
Remaining
View Similar
In Stock
UnitPrice:
$5.28
Quantity:
140
Please send RFQ , we will respond immediately.
