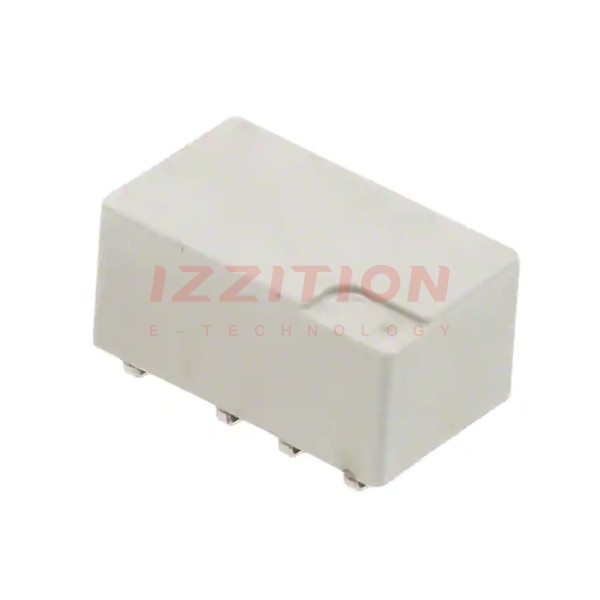

TE Connectivity Potter & Brumfield Relays-7-1462037-1 - Signal Relays, Up to 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Coil Voltage:	24VDC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	2 A
Switching Voltage:	250VAC, 220VDC - Max
Coil Current:	8.3 mA
Coil Type:	Latching, Single Coil
Features:	-
Termination Style:	J Lead
Seal Rating:	Sealed - Hermetically
Coil Insulation:	-
Must Operate Voltage:	18 VDC
Must Release Voltage:	-
Operate Time:	3 ms
Release Time:	3 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Palladium (Pd), Ruthenium (Ru), Gold (Au)
Relay Type:	Telecom

TE Connectivity Potter & Brumfield Relays 7-1462037-1
