TE Connectivity Potter & Brumfield Relays-7-1415541-0 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Socketable
Coil Voltage:	24VDC
Contact Form:	4PDT (4 Form C)
Contact Rating (Current):	6 A
Switching Voltage:	240VAC - Max
Coil Current:	30.9 mA
Coil Type:	Non Latching
Features:	Diode, Lighted Indicator, Test Button
Termination Style:	Plug In, Quick Connect - 0.110" (2.8mm)
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	Class F
Must Operate Voltage:	18 VDC
Must Release Voltage:	2.4 VDC
Operate Time:	15 ms
Release Time:	18 ms
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose

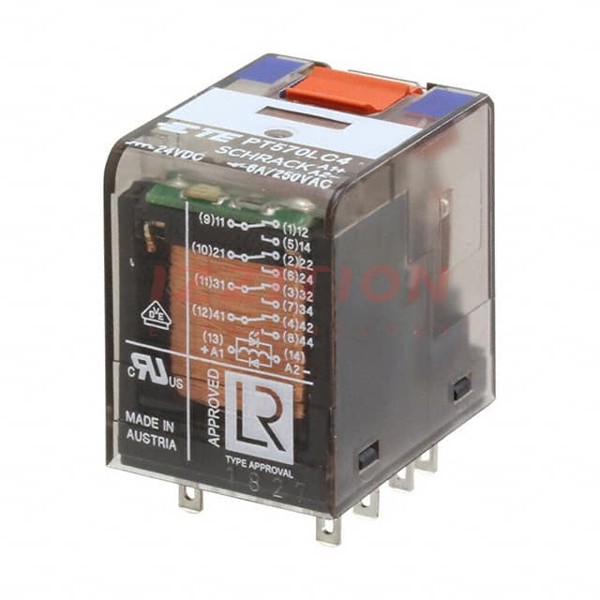

TE Connectivity Potter & Brumfield Relays 7-1415541-0
