TE Connectivity Potter & Brumfield Relays-2-1462039-9 - Signal Relays, Up to 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Coil Voltage:	5VDC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	2 A
Switching Voltage:	250VAC, 220VDC - Max
Coil Current:	10 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Gull Wing
Seal Rating:	Sealed - Hermetically
Coil Insulation:	-
Must Operate Voltage:	4.25 VDC
Must Release Voltage:	0.5 VDC
Operate Time:	3 ms
Release Time:	3 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Palladium (Pd), Ruthenium (Ru), Gold (Au)
Relay Type:	Telecom

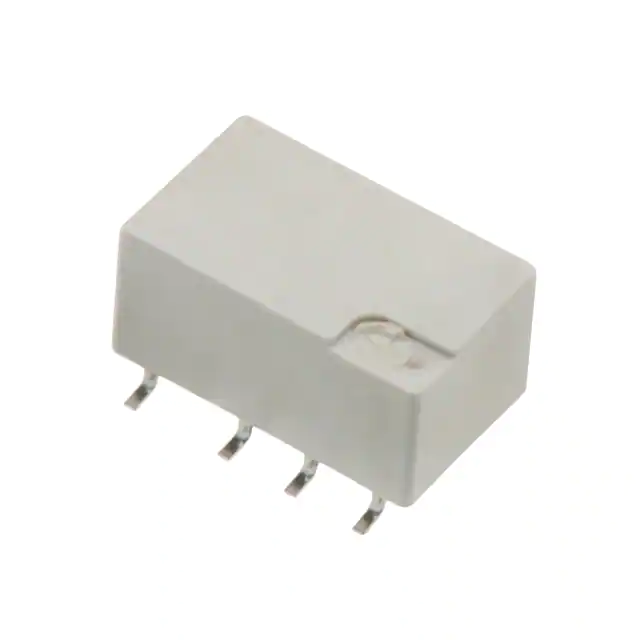

TE Connectivity Potter & Brumfield Relays 2-1462039-9
