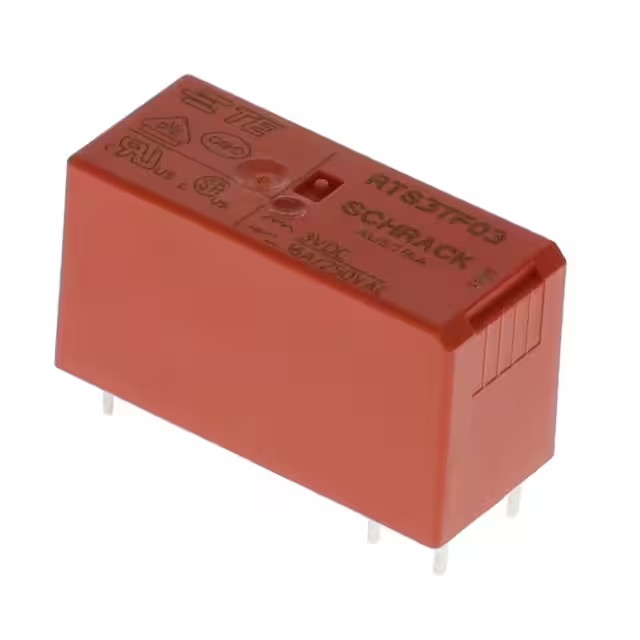

TE Connectivity Potter & Brumfield Relays-1415898-4 - Power Relays, Over 2 Amps Product Specifications and Latest Quotes

Mounting Type:	Through Hole
Coil Voltage:	3VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	16 A
Switching Voltage:	480VAC - Max
Coil Current:	200 mA
Coil Type:	Latching, Dual Coil
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	Class F
Must Operate Voltage:	2.1 VDC
Must Release Voltage:	1.8 VDC
Operate Time:	10 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 105°C
Contact Material:	Silver Tin Oxide (AgSnO), Tungsten (W)
Relay Type:	General Purpose

TE Connectivity Potter & Brumfield Relays 1415898-4
