Please send RFQ , we will respond immediately.

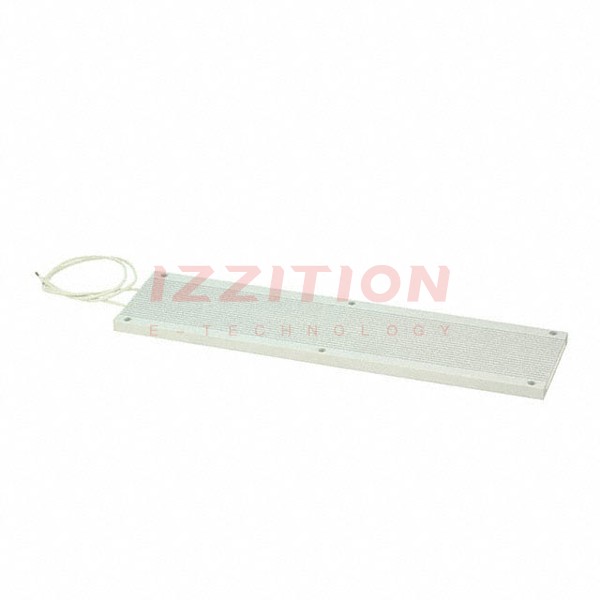

| Part Number | TJT5001R5J | TJT3001R5J | TJT5001K5J | TJT5001R0J |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Resistance | 1.5 Ohms | 1.5 Ohms | 1.5 kOhms | 1 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 500W | 300W | 500W | 500W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound |
| Temperature Coefficient | ±260ppm/°C | ±260ppm/°C | ±260ppm/°C | ±260ppm/°C |
| Operating Temperature | -25°C ~ 250°C | -25°C ~ 250°C | -25°C ~ 250°C | -25°C ~ 250°C |
| Features | - | - | - | - |
| Coating, Housing Type | Aluminum | Aluminum | Aluminum | Aluminum |
| Mounting Feature | Screw Holes | Screw Holes | Screw Holes | Screw Holes |
| Size / Dimension | 12.99" L x 3.15" W (330.00mm x 80.00mm) | 8.278" L x 3.150" W (210.00mm x 80.00mm) | 12.99" L x 3.15" W (330.00mm x 80.00mm) | 12.99" L x 3.15" W (330.00mm x 80.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Lead Style | Wire Leads | Wire Leads | Wire Leads | Wire Leads |
| Package / Case | Rectangular Case | Rectangular Case | Rectangular Case | Rectangular Case |
| Failure Rate | - | - | - | - |
