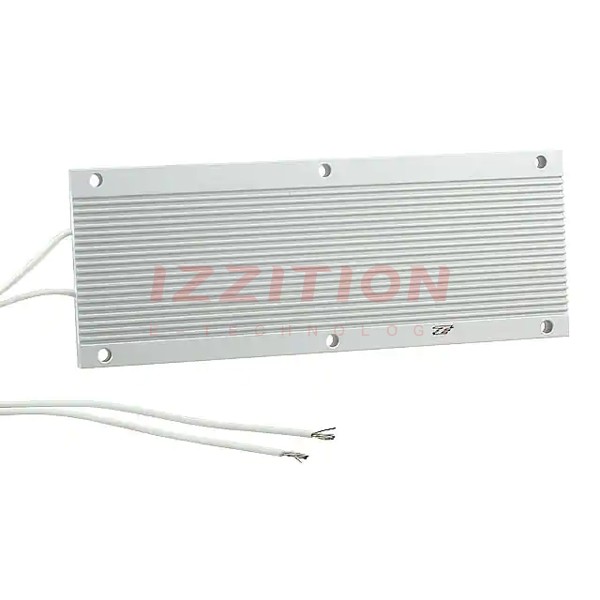

| Part Number | TJT2501R0J | TJT2501R5J | TJT1501R0J | TJT2501K0J |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| Product Status | Active | Active | Active | Active |
| Resistance | 1 Ohms | 1.5 Ohms | 1 Ohms | 1 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 250W | 250W | 150W | 250W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound |
| Temperature Coefficient | ±260ppm/°C | ±260ppm/°C | ±260ppm/°C | ±260ppm/°C |
| Operating Temperature | -25°C ~ 250°C | -25°C ~ 250°C | -25°C ~ 250°C | -25°C ~ 250°C |
| Features | - | - | - | - |
| Coating, Housing Type | Aluminum | Aluminum | Aluminum | Aluminum |
| Mounting Feature | Screw Holes | Screw Holes | Screw Holes | Screw Holes |
| Size / Dimension | 7.087" L x 3.150" W (180.00mm x 80.00mm) | 7.087" L x 3.150" W (180.00mm x 80.00mm) | 4.724" L x 3.150" W (120.00mm x 80.00mm) | 7.087" L x 3.150" W (180.00mm x 80.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Lead Style | Wire Leads | Wire Leads | Wire Leads | Wire Leads |
| Package / Case | Rectangular Case | Rectangular Case | Rectangular Case | Rectangular Case |
| Failure Rate | - | - | - | - |
