Please send RFQ , we will respond immediately.

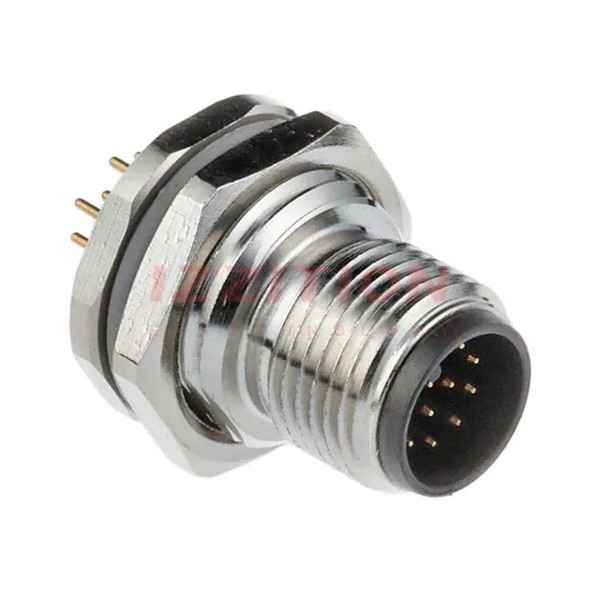

| Part Number | T4140012121-000 | T4141012121-000 | T4143012121-000 | T4142012121-000 | T4130012121-000 | T4140012021-000 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins | Receptacle, Male Pins |
| Number of Positions | 12 | 12 | 12 | 12 | 12 | 2 |
| Shell Size - Insert | M12-12 | M12-12 | M12-12 | M12-12 | M12-12 | M12-2 |
| Shell Size, MIL | - | - | - | - | - | - |
| Mounting Type | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Termination | Solder | Solder | Solder | Solder | Solder Cup | Solder |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | A | A | A | A | A | A |
| Primary Material | Metal | Metal | Metal | Metal | Metal | Metal |
| Shell Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold |
| Color | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - | - | - | UL94 V-0 |
| Features | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| Current Rating (Amps) | 1.5A | 1.5A | 1.5A | 1.5A | 1.5A | 4A |
| Voltage Rating | 30V | 30V | 30V | 30V | 30V | 250V |
| Cable Opening | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
