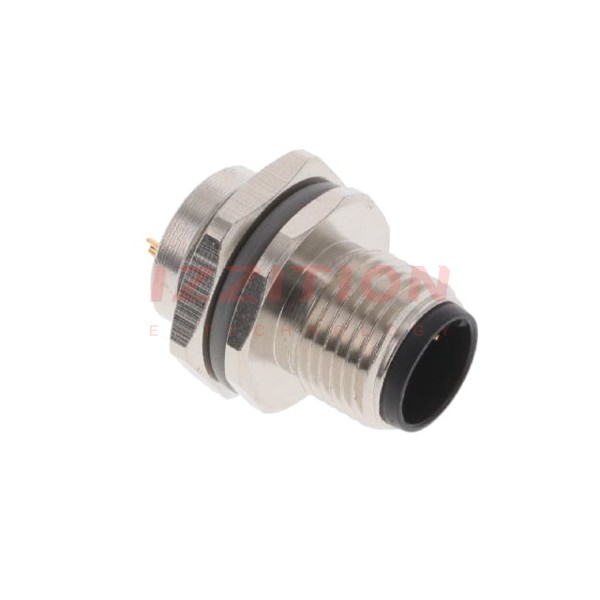

| Part Number | T4132512021-000 | T4132512031-000 | T4132512051-000 | T4132512041-000 | T4133512021-000 | T4130512021-000 | T4131512021-000 | T4132012021-000 | T4132412021-000 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Male Pins | Plug, Female Sockets | Receptacle, Male Pins | Plug, Female Sockets | Receptacle, Male Pins | Receptacle, Male Pins |
| Number of Positions | 2 | 3 | 5 | 4 | 2 | 2 | 2 | 2 | 2 |
| Shell Size - Insert | M12-2 | M12-3 | M12-5 | M12-4 | M12-2 | M12-2 | M12-2 | M12-2 | M12-2 |
| Shell Size, MIL | - | - | - | - | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | D | D | D | D | D | D | D | A | B |
| Primary Material | Metal | Metal | Metal | Metal | Metal | Metal | Metal | Metal | Metal |
| Shell Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| Current Rating (Amps) | 4A | 4A | 4A | 4A | 4A | 4A | 4A | 4A | 4A |
| Voltage Rating | 250V | 250V | 60V | 250V | 250V | 250V | 250V | 250V | 250V |
| Cable Opening | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
