T4113511051-000
  • Share:

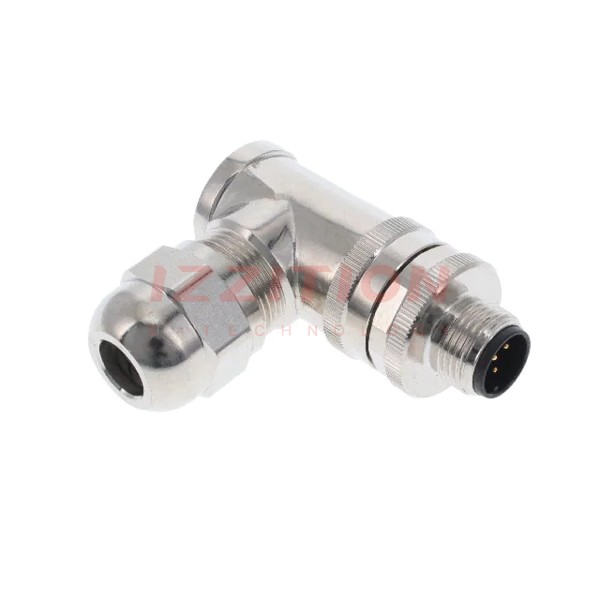

TE Connectivity AMP Connectors T4113511051-000

Manufacturer No:
T4113511051-000
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
T4113511051-000 Datasheet
ECAD Model:
-
Description:
CONN RCPT MALE 5POS GOLD SCREW
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle, Male Pins
Number of Positions:5
Shell Size - Insert:M12-5
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line), Right Angle
Mounting Feature:-
Termination:Screw
Fastening Type:Threaded
Orientation:D
Primary Material:Metal
Shell Material:Brass
Shell Finish:Nickel
Contact Finish - Mating:Gold
Color:Silver
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:-
Features:Backshell
Shielding:Shielded
Current Rating (Amps):4A
Voltage Rating:60V
Cable Opening:0.157" ~ 0.236" (4.00mm ~ 6.00mm)
Operating Temperature:-40°C ~ 85°C
0 Remaining View Similar

In Stock

$11.76
25

Please send RFQ , we will respond immediately.

Similar Products

Part Number T4113511051-000 T4113512051-000   T4111511051-000   T4112511051-000   T4113011051-000   T4113501051-000
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active
Connector Type Receptacle, Male Pins Receptacle, Male Pins Receptacle, Male Pins Plug, Female Sockets Receptacle, Male Pins Receptacle, Male Pins
Number of Positions 5 5 5 5 5 5
Shell Size - Insert M12-5 M12-5 M12-5 M12-5 M12-5 M12-5
Shell Size, MIL - - - - - -
Mounting Type Free Hanging (In-Line), Right Angle Free Hanging (In-Line), Right Angle Free Hanging (In-Line) Free Hanging (In-Line), Right Angle Free Hanging (In-Line), Right Angle Free Hanging (In-Line), Right Angle
Mounting Feature - - - - - -
Termination Screw Screw Screw Screw Screw Screw
Fastening Type Threaded Threaded Threaded Threaded Threaded Threaded
Orientation D D D D A D
Primary Material Metal Metal Metal Metal Metal Metal
Shell Material Brass Brass Brass Brass Brass Brass
Shell Finish Nickel Nickel Nickel Nickel Nickel Nickel
Contact Finish - Mating Gold Gold Gold Gold Gold Gold
Color Silver Silver Silver Silver Silver Black, Silver
Ingress Protection IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof
Material Flammability Rating - - - - - -
Features Backshell Backshell Backshell Backshell, Coupling Nut Backshell Backshell
Shielding Shielded Shielded Shielded Shielded Shielded Unshielded
Current Rating (Amps) 4A 4A 4A 4A 4A 4A
Voltage Rating 60V 60V 60V 60V 60V 60V
Cable Opening 0.157" ~ 0.236" (4.00mm ~ 6.00mm) 0.236" ~ 0.315" (6.00mm ~ 8.00mm) 0.157" ~ 0.236" (4.00mm ~ 6.00mm) 0.157" ~ 0.236" (4.00mm ~ 6.00mm) 0.157" ~ 0.236" (4.00mm ~ 6.00mm) 0.157" ~ 0.236" (4.00mm ~ 6.00mm)
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
