Please send RFQ , we will respond immediately.

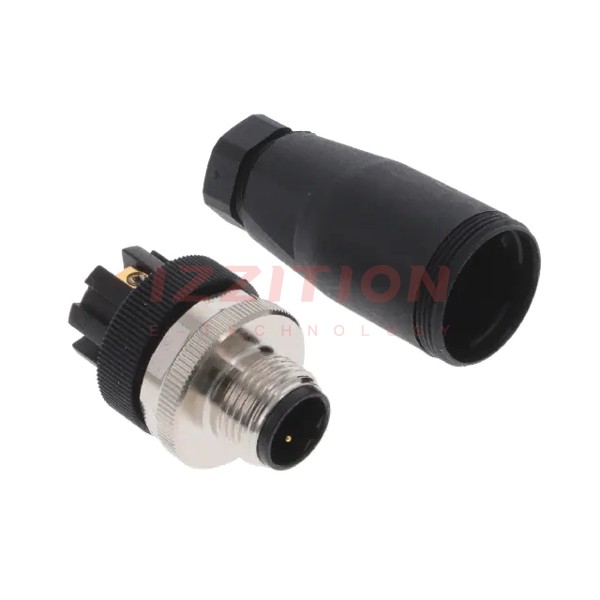

| Part Number | T4111401021-000 | T4111401041-000 | T4111401051-000 | T4111501021-000 | T4111402021-000 | T4111401031-000 | T4113401021-000 | T4111411021-000 | T4111001021-000 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Male Pins |
| Number of Positions | 2 | 4 | 5 | 2 | 2 | 3 | 2 | 2 | 2 |
| Shell Size - Insert | M12-2 | M12-4 | M12-5 | M12-2 | M12-2 | M12-3 | M12-2 | M12-2 | M12-2 |
| Shell Size, MIL | - | - | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - | - | - | - | - |
| Termination | Screw | Screw | Screw | Screw | Screw | Screw | Screw | Screw | Screw |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | B | B | B | D | B | B | B | B | A |
| Primary Material | Metal | Metal | Metal | Metal | Metal | Metal | Metal | Metal | Metal |
| Shell Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Color | Black, Silver | Black, Silver | Black, Silver | Black, Silver | Black, Silver | Black, Silver | Black, Silver | Silver | Black, Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - | - | - | - | - | - | - |
| Features | Backshell | Backshell | Backshell | Backshell | Backshell | Backshell | Backshell | Backshell | Backshell |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Shielded | Unshielded |
| Current Rating (Amps) | 4A | 4A | 4A | 4A | 4A | 4A | 4A | 4A | 4A |
| Voltage Rating | 250V | 250V | 60V | 250V | 250V | 250V | 250V | 250V | 250V |
| Cable Opening | 0.157" ~ 0.236" (4.00mm ~ 6.00mm) | 0.157" ~ 0.236" (4.00mm ~ 6.00mm) | 0.157" ~ 0.236" (4.00mm ~ 6.00mm) | 0.157" ~ 0.236" (4.00mm ~ 6.00mm) | 0.236" ~ 0.315" (6.00mm ~ 8.00mm) | 0.157" ~ 0.236" (4.00mm ~ 6.00mm) | 0.157" ~ 0.236" (4.00mm ~ 6.00mm) | 0.157" ~ 0.236" (4.00mm ~ 6.00mm) | 0.157" ~ 0.236" (4.00mm ~ 6.00mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
