T4110402041-000
  • Share:

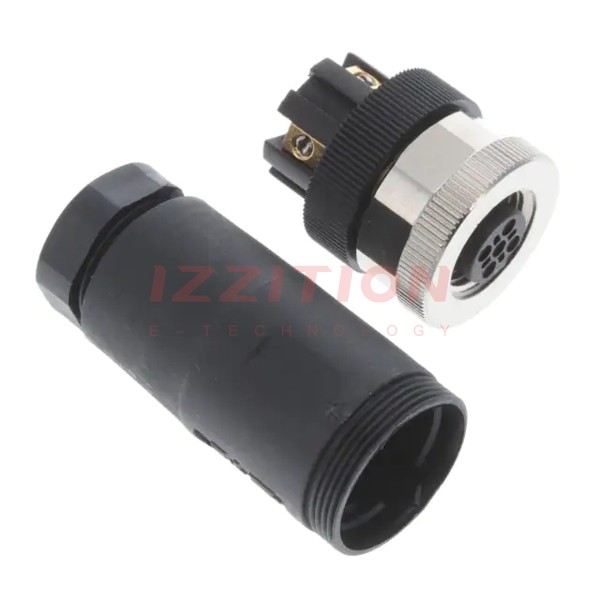

TE Connectivity AMP Connectors T4110402041-000

Manufacturer No:
T4110402041-000
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
T4110402041-000 Datasheet
ECAD Model:
-
Description:
CONN PLUG FMALE 4POS GOLD SCREW
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug, Female Sockets
Number of Positions:4
Shell Size - Insert:M12-4
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Screw
Fastening Type:Threaded
Orientation:B
Primary Material:Metal
Shell Material:Brass
Shell Finish:Nickel
Contact Finish - Mating:Gold
Color:Black, Silver
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:-
Features:Backshell, Coupling Nut
Shielding:Unshielded
Current Rating (Amps):4A
Voltage Rating:250V
Cable Opening:0.236" ~ 0.315" (6.00mm ~ 8.00mm)
Operating Temperature:-40°C ~ 85°C
0 Remaining View Similar

In Stock

$7.21
118

Please send RFQ , we will respond immediately.

Similar Products

Part Number T4110402041-000 T4110502041-000   T4110402051-000   T4111402041-000   T4112402041-000   T4110412041-000   T4110002041-000   T4110401041-000   T4110402021-000
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active Active
Connector Type Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Receptacle, Male Pins Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets
Number of Positions 4 4 5 4 4 4 4 4 2
Shell Size - Insert M12-4 M12-4 M12-5 M12-4 M12-4 M12-4 M12-4 M12-4 M12-2
Shell Size, MIL - - - - - - - - -
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line), Right Angle Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Mounting Feature - - - - - - - - -
Termination Screw Screw Screw Screw Screw Screw Screw Screw Screw
Fastening Type Threaded Threaded Threaded Threaded Threaded Threaded Threaded Threaded Threaded
Orientation B D B B B B A B B
Primary Material Metal Metal Metal Metal Metal Metal Metal Metal Metal
Shell Material Brass Brass Brass Brass Brass Brass Brass Brass Brass
Shell Finish Nickel Nickel Nickel Nickel Nickel Nickel Nickel Nickel Nickel
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold Gold
Color Black, Silver Silver Black, Silver Black, Silver Black, Silver Silver Black, Silver Black, Silver Black, Silver
Ingress Protection IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof
Material Flammability Rating - - - - - - - - -
Features Backshell, Coupling Nut Backshell, Coupling Nut Backshell, Coupling Nut Backshell Backshell, Coupling Nut Backshell, Coupling Nut Backshell, Coupling Nut Backshell, Coupling Nut Backshell, Coupling Nut
Shielding Unshielded Unshielded Unshielded Unshielded Unshielded Shielded Unshielded Unshielded Unshielded
Current Rating (Amps) 4A 4A 4A 4A 4A 4A 4A 4A 4A
Voltage Rating 250V 250V 60V 250V 250V 250V 250V 250V 250V
Cable Opening 0.236" ~ 0.315" (6.00mm ~ 8.00mm) 0.236" ~ 0.315" (6.00mm ~ 8.00mm) 0.236" ~ 0.315" (6.00mm ~ 8.00mm) 0.236" ~ 0.315" (6.00mm ~ 8.00mm) 0.236" ~ 0.315" (6.00mm ~ 8.00mm) 0.236" ~ 0.315" (6.00mm ~ 8.00mm) 0.236" ~ 0.315" (6.00mm ~ 8.00mm) 0.157" ~ 0.236" (4.00mm ~ 6.00mm) 0.236" ~ 0.315" (6.00mm ~ 8.00mm)
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
