T4110012081-000
  • Share:

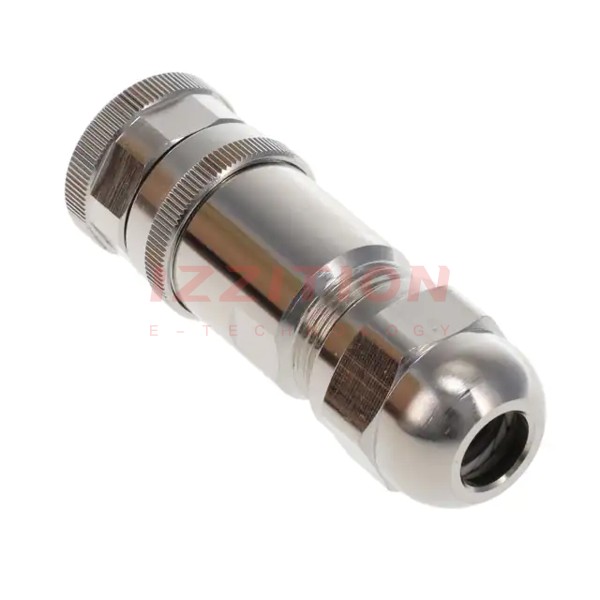

TE Connectivity AMP Connectors T4110012081-000

Manufacturer No:
T4110012081-000
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
T4110012081-000 Datasheet
ECAD Model:
-
Description:
CONN PLUG FMALE 8POS GOLD SCREW
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug, Female Sockets
Number of Positions:8
Shell Size - Insert:M12-8
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Screw
Fastening Type:Threaded
Orientation:A
Primary Material:Metal
Shell Material:Brass
Shell Finish:Nickel
Contact Finish - Mating:Gold
Color:Silver
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:-
Features:Backshell, Coupling Nut
Shielding:Shielded
Current Rating (Amps):2A
Voltage Rating:30V
Cable Opening:0.236" ~ 0.315" (6.00mm ~ 8.00mm)
Operating Temperature:-40°C ~ 85°C
0 Remaining View Similar

In Stock

$14.23
6

Please send RFQ , we will respond immediately.

Similar Products

Part Number T4110012081-000 T4111012081-000   T4112012081-000   T4110002081-000   T4110011081-000   T4110012021-000   T4110012041-000   T4110012051-000
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active
Connector Type Plug, Female Sockets Receptacle, Male Pins Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets
Number of Positions 8 8 8 8 8 2 4 5
Shell Size - Insert M12-8 M12-8 M12-8 M12-8 M12-8 M12-2 M12-4 M12-5
Shell Size, MIL - - - - - - - -
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line), Right Angle Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Mounting Feature - - - - - - - -
Termination Screw Screw Screw Screw Screw Screw Screw Screw
Fastening Type Threaded Threaded Threaded Threaded Threaded Threaded Threaded Threaded
Orientation A A A A A A A A
Primary Material Metal Metal Metal Metal Metal Metal Metal Metal
Shell Material Brass Brass Brass Brass Brass Brass Brass Brass
Shell Finish Nickel Nickel Nickel Nickel Nickel Nickel Nickel Nickel
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold
Color Silver Silver Silver Black, Silver Silver Silver Silver Silver
Ingress Protection IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof
Material Flammability Rating - - - - - - - -
Features Backshell, Coupling Nut Backshell Backshell, Coupling Nut Backshell, Coupling Nut Backshell, Coupling Nut Backshell, Coupling Nut Backshell, Coupling Nut Backshell, Coupling Nut
Shielding Shielded Shielded Shielded Unshielded Shielded Shielded Shielded Shielded
Current Rating (Amps) 2A 2A 2A 2A 2A 4A 4A 4A
Voltage Rating 30V 30V 30V 30V 30V 250V 250V 60V
Cable Opening 0.236" ~ 0.315" (6.00mm ~ 8.00mm) 0.236" ~ 0.315" (6.00mm ~ 8.00mm) 0.236" ~ 0.315" (6.00mm ~ 8.00mm) 0.236" ~ 0.315" (6.00mm ~ 8.00mm) 0.157" ~ 0.236" (4.00mm ~ 6.00mm) 0.236" ~ 0.315" (6.00mm ~ 8.00mm) 0.236" ~ 0.315" (6.00mm ~ 8.00mm) 0.236" ~ 0.315" (6.00mm ~ 8.00mm)
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
