Please send RFQ , we will respond immediately.

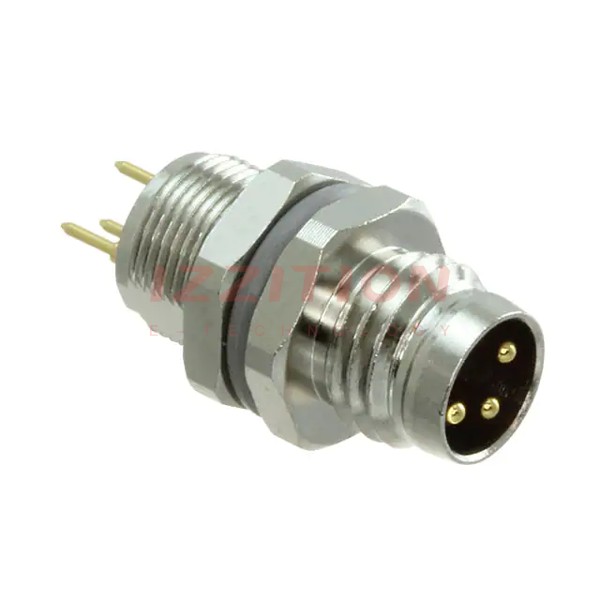

| Part Number | T4042014031-000 | T4042014041-000 | T4043014031-000 | T4032014031-000 | T4040014031-000 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Plug, Male Pins | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 3 | 4 | 3 | 3 | 3 |
| Shell Size - Insert | M8-3 | M8-4 | M8-3 | M8-3 | M8-3 |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead | Bulkhead | Bulkhead | Bulkhead - Rear Side Nut | Bulkhead |
| Termination | Solder | Solder | Solder | Solder Cup | Solder |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | A | A | A | A | A |
| Primary Material | Metal | Metal | Metal | Metal | Metal |
| Shell Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold |
| Color | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - | - | - |
| Features | - | - | - | - | - |
| Shielding | - | - | - | - | - |
| Current Rating (Amps) | 3A | 3A | 3A | 3A | 3A |
| Voltage Rating | 60V | 30V | 30V | 60V | 60V |
| Cable Opening | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
