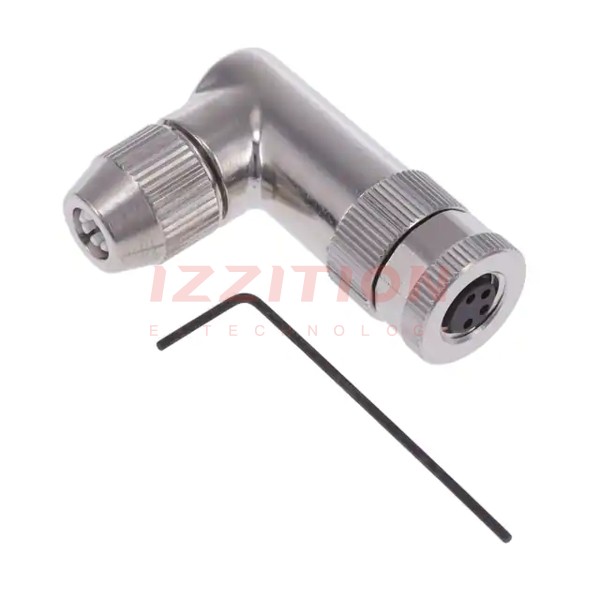

| Part Number | T4012019041-000 | T4013019041-000 | T4010019041-000 | T4011019041-000 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Receptacle, Female Sockets | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins |
| Number of Positions | 4 | 4 | 4 | 4 |
| Shell Size - Insert | M8-4 | M8-4 | M8-4 | M8-4 |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - |
| Termination | Screw | Screw | Screw | Screw |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Orientation | - | - | - | - |
| Primary Material | Metal | Metal | Metal | Metal |
| Shell Material | Brass | Brass | Brass | Brass |
| Shell Finish | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold | Gold |
| Color | Silver | Silver | Silver | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - | - |
| Features | Coupling Nut | - | Backshell, Coupling Nut | Backshell |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| Current Rating (Amps) | 3A | 3A | 3A | 3A |
| Voltage Rating | 30V | 30V | 30V | 30V |
| Cable Opening | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
