Please send RFQ , we will respond immediately.

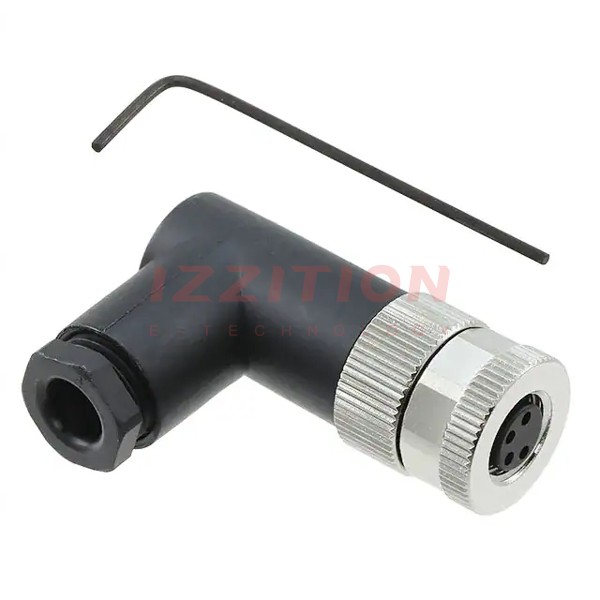

| Part Number | T4012008041-000 | T4013008041-000 | T4010008041-000 | T4011008041-000 | T4012008031-000 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Receptacle, Female Sockets | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | Receptacle, Female Sockets |
| Number of Positions | 4 | 4 | 4 | 4 | 3 |
| Shell Size - Insert | M8-4 | M8-4 | M8-4 | M8-4 | M8-3 |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | - | - | - | - |
| Termination | Screw | Screw | Screw | Screw | Screw |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | A | A | A | - | A |
| Primary Material | Metal | Metal | Metal | Metal | Metal |
| Shell Material | Brass | Brass | Brass | Brass | Brass |
| Shell Finish | Nickel | Nickel | Nickel | - | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold |
| Color | Silver | Silver | Silver | - | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - | - | - |
| Features | Backshell, Coupling Nut | Backshell | Backshell, Coupling Nut | Backshell | Backshell, Coupling Nut |
| Shielding | - | - | - | - | Unshielded |
| Current Rating (Amps) | 3A | 3A | 3A | 3A | 3A |
| Voltage Rating | 30V | 30V | 30V | 30V | 60V |
| Cable Opening | - | - | - | - | 0.138" ~ 0.189" (3.50mm ~ 4.80mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
