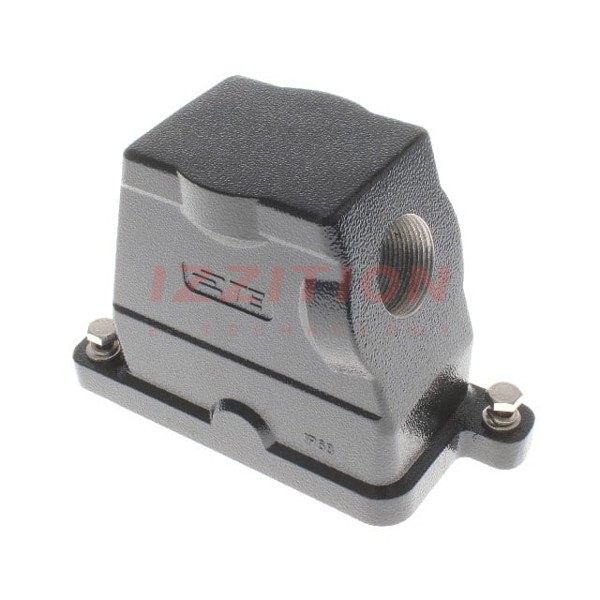

| Part Number | T1910100121-009 | T1910100129-009 | T1912100121-009 | T1920100121-009 | T1910160121-009 | T1910100120-009 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Hood | Hood | Hood | Hood | Hood | Hood |
| Style | Side Entry | Side Entry | Side Entry | Top Entry | Side Entry | Side Entry |
| Size | H10B | H10B | H10B | H10B | H16B | H10B |
| Lock Location | Screw Locks on Hood | Screw Locks on Hood | Screw Locks on Hood | Screw Locks on Hood | Screw Locks on Hood | Screw Locks on Hood |
| Thread Size | PG21 | PG29 | PG21 | PG21 | PG21 | M20 |
| Size / Dimension | 5.748" L x 2.283" W x 3.976" H (146.00mm x 58.00mm x 101.00mm) | 5.748" L x 2.283" W x 3.976" H (146.00mm x 58.00mm x 101.00mm) | 4.331" L x 2.094" W x 2.756" H (110.00mm x 53.20mm x 70.00mm) | 5.748" L x 2.283" W x 3.976" H (146.00mm x 58.00mm x 101.00mm) | 6.535" L x 2.283" W x 4.402" H (166.00mm x 58.00mm x 111.80mm) | 5.748" L x 2.283" W x 3.976" H (146.00mm x 58.00mm x 101.00mm) |
| Housing Color | Black | Black | Black | Black | Black | Black |
| Features | Corrosion Resistant, EMC Resistant | Corrosion Resistant, EMC Resistant | Corrosion Resistant, EMC Resistant | Corrosion Resistant, EMC Resistant | Corrosion Resistant, EMC Resistant | Corrosion Resistant, EMC Resistant |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Powder Coated | Powder Coated | Powder Coated | Powder Coated |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
