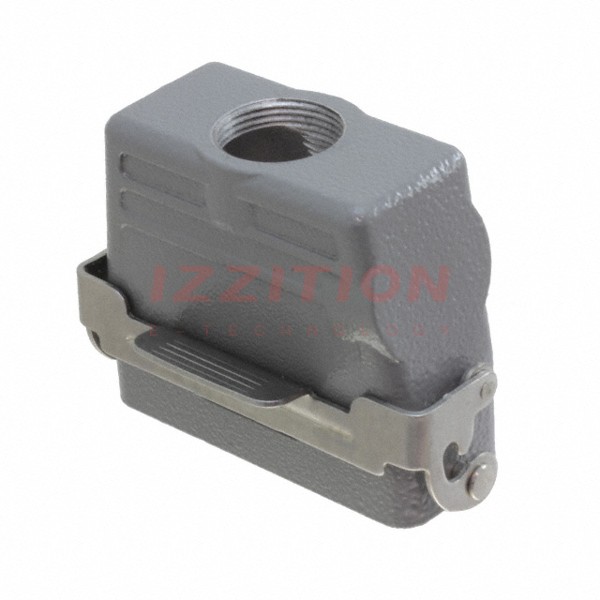

| Part Number | T1779161125-000 | T1739161125-000 | T1779161120-000 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Hood - Coupling | Hood - Coupling | Hood - Coupling |
| Style | Bottom Entry | Bottom Entry | Bottom Entry |
| Size | H16A | H16A | H16A |
| Lock Location | Locking Clip (1) on Hood Top | Locking Clip (1) on Hood Top | Locking Clip (1) on Hood Top |
| Thread Size | M25 | M25 | M20 |
| Size / Dimension | 3.110" L x 1.161" W x 2.622" H (79.00mm x 29.50mm x 66.60mm) | 3.110" L x 1.161" W x 2.039" H (79.00mm x 29.50mm x 51.80mm) | 3.110" L x 1.161" W x 2.622" H (79.00mm x 29.50mm x 66.60mm) |
| Housing Color | Gray | Gray | Gray |
| Features | Cable to Cable | Cable to Cable | Cable to Cable |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Stainless Steel | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Powder Coated |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
