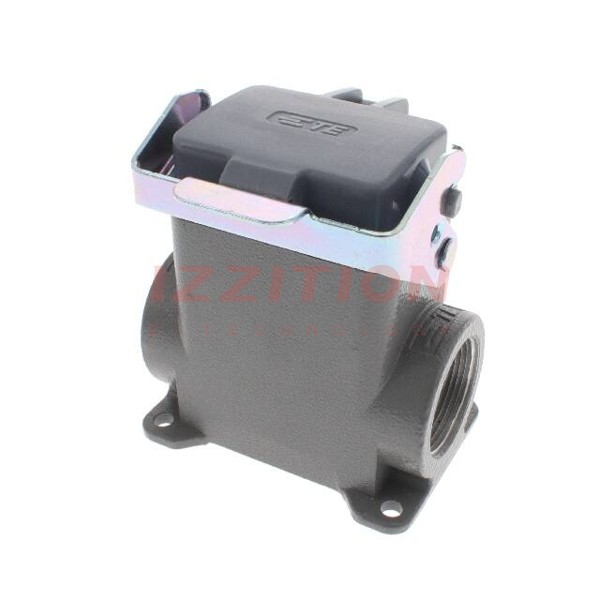

| Part Number | T1660063132-000 | T1660163132-000 | T1650063132-000 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Base - Box Mount | Base - Box Mount | Base - Box Mount |
| Style | Side Entry | Side Entry | Side Entry |
| Size | H6B | H16B | H6B |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | M32 | M32 | M32 |
| Size / Dimension | 3.228" L x 2.244" W x 2.992" H (82.00mm x 57.00mm x 76.00mm) | - | 3.228" L x 2.244" W x 2.976" H (82.00mm x 57.00mm x 75.60mm) |
| Housing Color | Gray | Gray | Gray |
| Features | Cover | Cover | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Powder Coated |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
