T1629163125-000
  • Share:

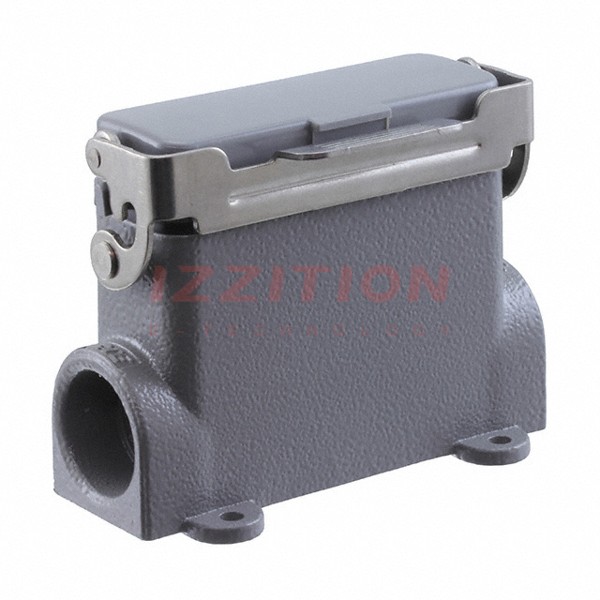

TE Connectivity AMP Connectors T1629163125-000

Manufacturer No:
T1629163125-000
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
T1629163125-000 Datasheet
ECAD Model:
-
Description:
H16A-SDRS-M25
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Base - Box Mount
Style:Side Entry
Size:H16A
Lock Location:Locking Clip (1) on Base Bottom
Thread Size:M25
Size / Dimension:3.780" L x 1.969" W x 2.244" H (96.00mm x 50.00mm x 57.00mm)
Housing Color:Gray
Features:Cover
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum Alloy, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
0 Remaining View Similar

In Stock

$20.41
42

Please send RFQ , we will respond immediately.

Similar Products

Part Number T1629163125-000 T1629163225-000   T1620163125-000   T1629161125-000   T1629163120-000
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active
Connector Type Base - Box Mount Base - Box Mount Base - Box Mount Base - Box Mount Base - Box Mount
Style Side Entry Side Entry Side Entry Side Entry Side Entry
Size H16A H16A H16B H16A H16A
Lock Location Locking Clip (1) on Base Bottom Locking Clip (1) on Base Bottom Locking Clip (1) on Base Bottom Locking Clip (1) on Base Bottom Locking Clip (1) on Base Bottom
Thread Size M25 M25 M25 M25 M20
Size / Dimension 3.780" L x 1.969" W x 2.244" H (96.00mm x 50.00mm x 57.00mm) 3.780" L x 1.969" W x 2.244" H (96.00mm x 50.00mm x 57.00mm) - 3.780" L x 1.969" W x 2.244" H (96.00mm x 50.00mm x 57.00mm) 3.780" L x 1.969" W x 2.244" H (96.00mm x 50.00mm x 57.00mm)
Housing Color Gray Gray Gray Gray Gray
Features Cover Cover, Feed Through Cover Cover Cover
Ingress Protection IP65 - Dust Tight, Water Resistant IP65 - Dust Tight, Water Resistant IP65 - Dust Tight, Water Resistant IP65 - Dust Tight, Water Resistant IP65 - Dust Tight, Water Resistant
Housing Material Aluminum Alloy, Die Cast Aluminum Alloy, Die Cast Aluminum Alloy, Die Cast Aluminum Alloy, Die Cast Aluminum Alloy, Die Cast
Housing Finish Powder Coated Powder Coated Powder Coated Powder Coated Powder Coated
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
