Please send RFQ , we will respond immediately.

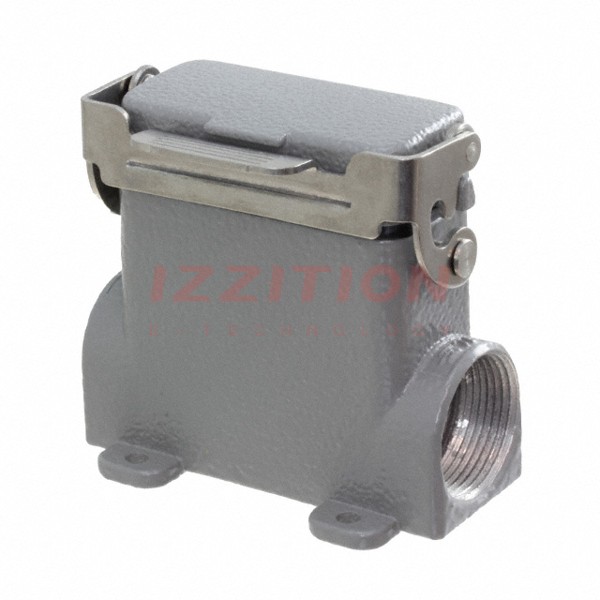

| Part Number | T1629101225-000 | T1629161225-000 | T1619101225-000 | T1629101125-000 | T1629101220-000 | T1629101221-000 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Base - Box Mount | Base - Box Mount | Base - Box Mount | Base - Box Mount | Base - Box Mount | Base - Box Mount |
| Style | Side Entry | Side Entry | Side Entry | Side Entry | Side Entry | Side Entry |
| Size | H10A | H16A | H10A | H10A | H10A | H10A |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | M25 | M25 | M25 | M25 | M20 | PG21 |
| Size / Dimension | - | 3.780" L x 1.969" W x 2.244" H (96.00mm x 50.00mm x 57.00mm) | 3.150" L x 1.969" W x 2.244" H (80.00mm x 50.00mm x 57.00mm) | - | - | - |
| Housing Color | Gray | Gray | Gray | Gray | Gray | Gray |
| Features | Cover, Feed Through | Cover, Feed Through | Feed Through | Cover | Cover, Feed Through | Cover, Feed Through |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Powder Coated | Powder Coated | Powder Coated | Powder Coated |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
