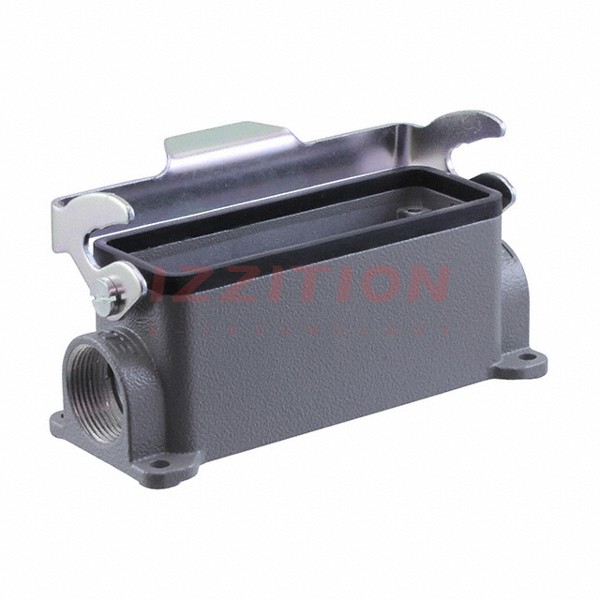

| Part Number | T1610243121-000 | T1660243121-000 | T1620243121-000 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Base - Box Mount | Base - Box Mount | Base - Box Mount |
| Style | Side Entry | Side Entry | Side Entry |
| Size | H24B | H24B | H24B |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | PG21 | PG21 | PG21 |
| Size / Dimension | 5.669" L x 2.244" W x 2.228" H (144.00mm x 57.00mm x 56.60mm) | 5.669" L x 2.244" W x 2.228" H (144.00mm x 57.00mm x 56.60mm) | 5.669" L x 2.244" W x 2.228" H (144.00mm x 57.00mm x 56.60mm) |
| Housing Color | Gray | Gray | Gray |
| Features | - | Cover | Cover |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Powder Coated |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
