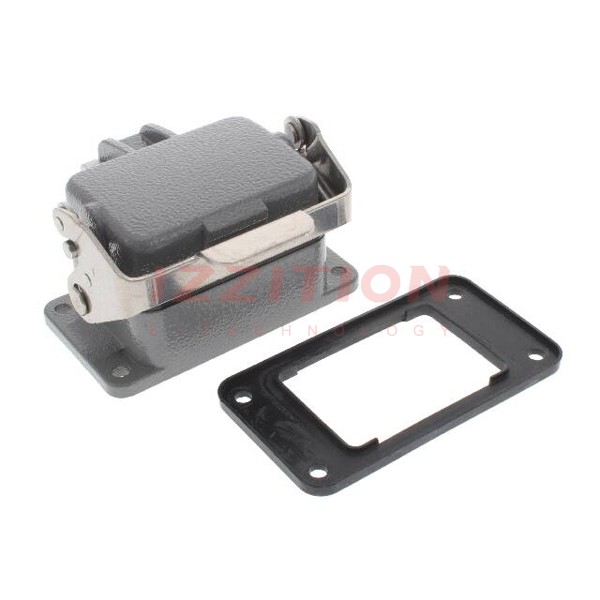

| Part Number | T1510062000-000 | T1510162000-000 | T1510062100-000 | T1500062000-000 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Base - Panel Mount | Base - Panel Mount | Base - Panel Mount | Base - Panel Mount |
| Style | Bottom Entry | Bottom Entry | Bottom Entry | Bottom Entry |
| Size | H6B | H16B | H6B | H6B |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | - | - | - | - |
| Size / Dimension | 3.228" L x 1.799" W x 1.173" H (82.00mm x 45.70mm x 29.80mm) | - | 3.228" L x 1.799" W x 1.173" H (82.00mm x 45.70mm x 29.80mm) | 3.228" L x 1.799" W x 1.173" H (82.00mm x 45.70mm x 29.80mm) |
| Housing Color | Gray | - | Gray | Gray |
| Features | Cover | Cover | Cover | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | - | Powder Coated | Powder Coated |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
