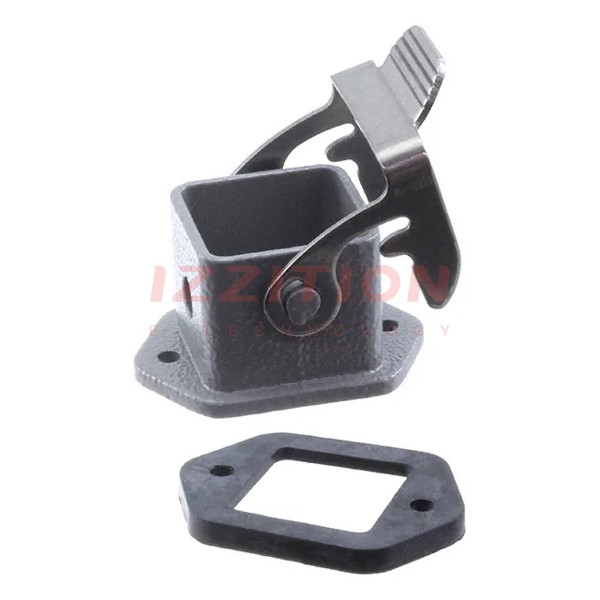

| Part Number | T1509031000-000 | T1509031100-000 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Base - Panel Mount | Base - Panel Mount |
| Style | Bottom Entry | Bottom Entry |
| Size | H3A | H3A |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | - | - |
| Size / Dimension | 1.661" L x 1.189" W x 0.945" H (42.20mm x 30.20mm x 24.00mm) | 1.661" L x 1.189" W x 0.984" H (42.20mm x 30.20mm x 25.00mm) |
| Housing Color | Gray | - |
| Features | - | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Zinc, Die Cast | Polycarbonate (PC) |
| Housing Finish | Powder Coated | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
