Please send RFQ , we will respond immediately.

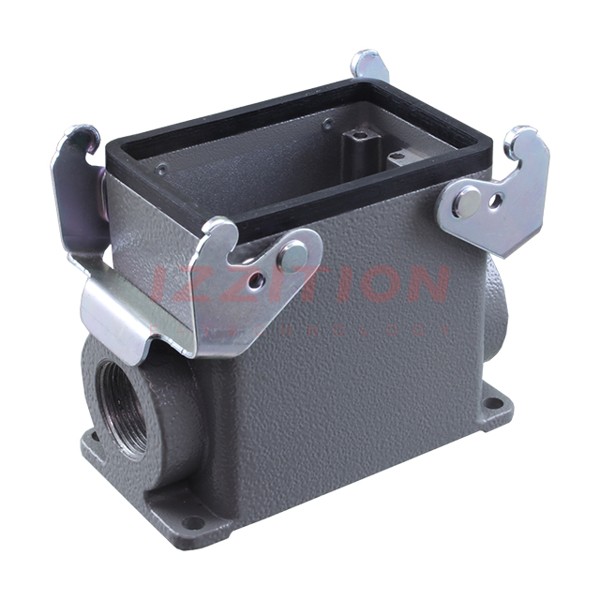

| Part Number | T1449320225-000 | T1449320125-000 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Base - Box Mount | Base - Box Mount |
| Style | Side Entry | Side Entry |
| Size | H32A | H32A |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom |
| Thread Size | M25 | M25 |
| Size / Dimension | 4.173" L x 2.276" W x 3.311" H (106.00mm x 57.80mm x 84.10mm) | 4.173" L x 2.276" W x 3.311" H (106.00mm x 57.80mm x 84.10mm) |
| Housing Color | Gray | Gray |
| Features | Feed Through | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
