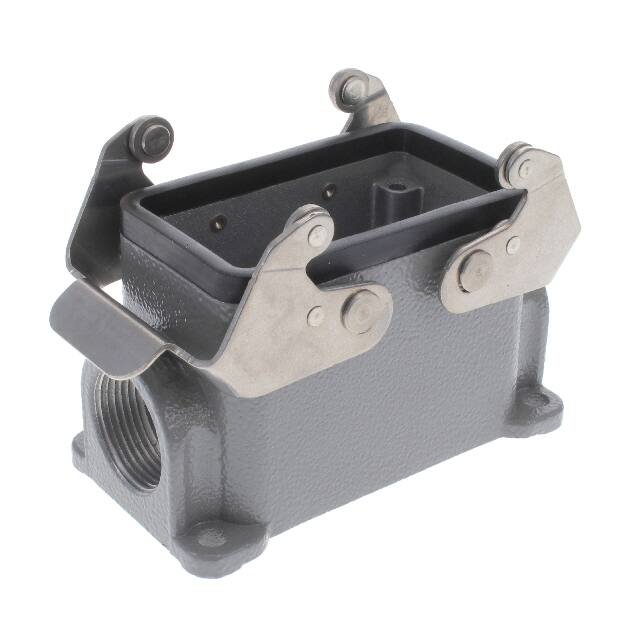

| Part Number | T1440101125-000 | T1440101225-000 | T1440161125-000 | T1440102125-000 | T1440101120-000 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Base - Box Mount | Base - Box Mount | Base - Box Mount | Base - Box Mount | Base - Box Mount |
| Style | Side Entry | Side Entry | Side Entry | Side Entry | Side Entry |
| Size | H10B | H10B | H16B | H10B | H10B |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom |
| Thread Size | M25 | M25 | M25 | M25 | M20 |
| Size / Dimension | 3.701" L x 1.693" W x 2.386" H (94.00mm x 43.00mm x 60.60mm) | 3.701" L x 1.693" W x 2.386" H (94.00mm x 43.00mm x 60.60mm) | 4.606" L x 2.244" W x 2.228" H (117.00mm x 57.00mm x 56.60mm) | - | 3.701" L x 2.047" W x 2.386" H (94.00mm x 52.00mm x 60.60mm) |
| Housing Color | Gray | Gray | Gray | Gray | Gray |
| Features | - | Feed Through | - | Feed Through | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Powder Coated | Powder Coated | Powder Coated |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
