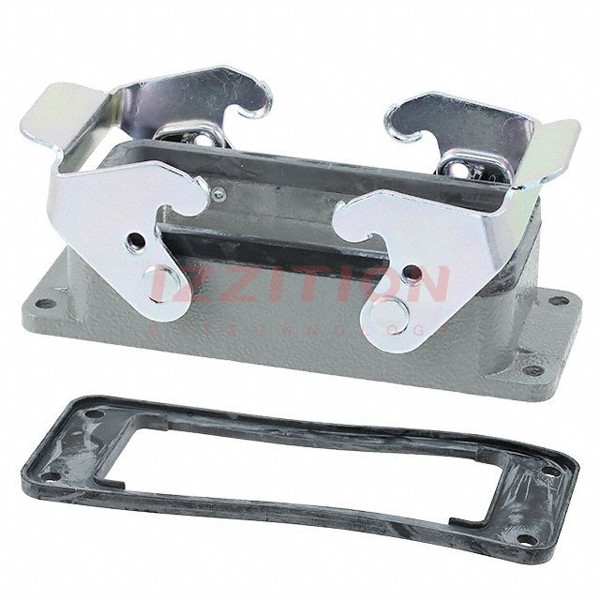

| Part Number | T1410162000-000 | T1510162000-000 | T1410161000-000 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Base - Panel Mount | Base - Panel Mount | Base - Panel Mount |
| Style | Bottom Entry | Bottom Entry | Bottom Entry |
| Size | H16B | H16B | H16B |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (2) on Base Bottom |
| Thread Size | - | - | - |
| Size / Dimension | 4.575" L x 1.799" W x 1.173" H (116.20mm x 45.70mm x 29.80mm) | - | 4.575" L x 1.799" W x 1.173" H (116.20mm x 45.70mm x 29.80mm) |
| Housing Color | Gray | - | Gray |
| Features | - | Cover | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | - | Powder Coated |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
