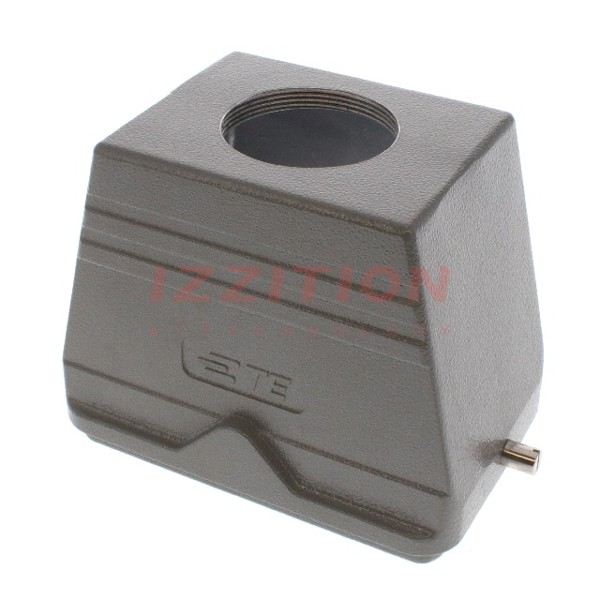

| Part Number | T1320480150-000 | T1310480150-000 | T1320480140-000 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Hood | Hood | Hood |
| Style | Top Entry | Side Entry | Top Entry |
| Size | H48B | H48B | H48B |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | M50 | M50 | M40 |
| Size / Dimension | 5.197" L x 3.465" W x 4.193" H (132.00mm x 88.00mm x 106.50mm) | 5.197" L x 3.465" W x 4.193" H (132.00mm x 88.00mm x 106.50mm) | 5.197" L x 3.465" W x 4.193" H (132.00mm x 88.00mm x 106.50mm) |
| Housing Color | Gray | Gray | Gray |
| Features | - | - | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Powder Coated |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
