Please send RFQ , we will respond immediately.

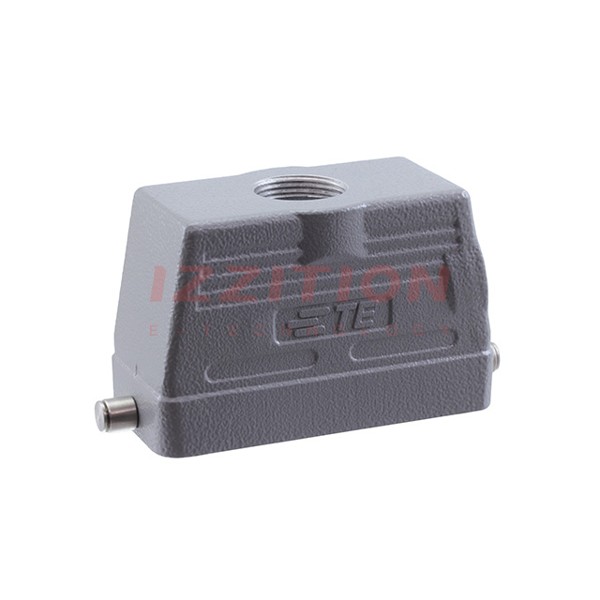

| Part Number | T1320160125-000 | T1330160125-000 | T1340160125-000 | T1329160125-000 | T1320160121-000 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Hood | Hood | Hood | Hood | Hood |
| Style | Top Entry | Side Entry | Top Entry | Top Entry | Top Entry |
| Size | H16B | H16B | H16B | H16A | H16B |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | M25 | M25 | M25 | M25 | PG21 |
| Size / Dimension | 3.681" L x 1.693" W x 2.362" H (93.50mm x 43.00mm x 60.00mm) | 3.681" L x 1.693" W x 2.992" H (93.50mm x 43.00mm x 76.00mm) | 3.681" L x 1.693" W x 2.992" H (93.50mm x 43.00mm x 76.00mm) | 3.118" L x 1.169" W x 2.291" H (79.20mm x 29.70mm x 58.20mm) | 3.681" L x 1.693" W x 2.362" H (93.50mm x 43.00mm x 60.00mm) |
| Housing Color | Gray | Gray | Gray | Gray | Gray |
| Features | - | - | - | - | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Powder Coated | Powder Coated | Powder Coated |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
