Please send RFQ , we will respond immediately.

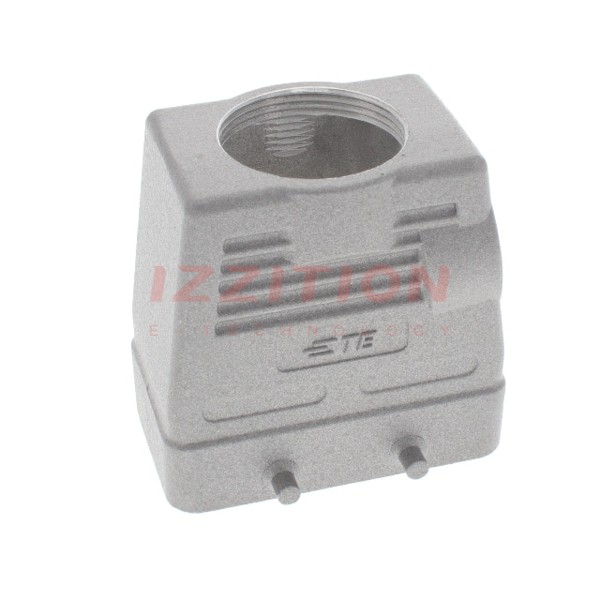

| Part Number | T1240105129-000 | T1230105129-000 | T1240105121-000 | T1240105125-000 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Hood | Hood | Hood | Hood |
| Style | Top Entry | Side Entry | Top Entry | Top Entry |
| Size | H10B | H10B | H10B | H10B |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom |
| Thread Size | PG29 | PG29 | PG21 | M25 |
| Size / Dimension | 2.874" L x 1.693" W x 2.835" H (73.00mm x 43.00mm x 72.00mm) | 2.874" L x 1.693" W x 2.835" H (73.00mm x 43.00mm x 72.00mm) | 2.874" L x 1.693" W x 2.835" H (73.00mm x 43.00mm x 72.00mm) | 2.874" L x 1.693" W x 2.835" H (73.00mm x 43.00mm x 72.00mm) |
| Housing Color | - | - | - | - |
| Features | - | - | - | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
