Please send RFQ , we will respond immediately.

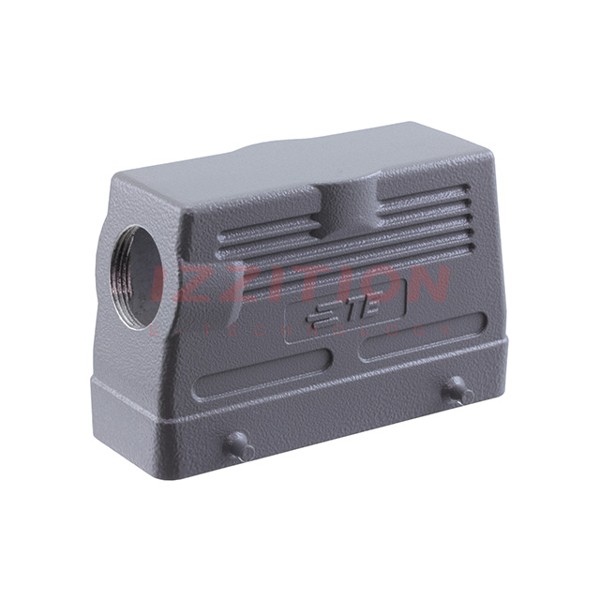

| Part Number | T1230240121-000 | T1240240121-000 | T1230240129-000 | T1230240125-000 | T1220240121-000 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Hood | Hood | Hood | Hood | Hood |
| Style | Side Entry | Top Entry | Side Entry | Side Entry | Top Entry |
| Size | H24B | H24B | H24B | H24B | H24B |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom |
| Thread Size | PG21 | PG21 | PG29 | M25 | PG21 |
| Size / Dimension | 4.724" L x 1.693" W x 2.992" H (120.00mm x 43.00mm x 76.00mm) | 4.724" L x 1.693" W x 2.992" H (120.00mm x 43.00mm x 76.00mm) | 4.724" L x 1.693" W x 2.992" H (120.00mm x 43.00mm x 76.00mm) | 4.724" L x 1.693" W x 2.992" H (120.00mm x 43.00mm x 76.00mm) | 4.724" L x 1.693" W x 2.362" H (120.00mm x 43.00mm x 60.00mm) |
| Housing Color | Gray | Gray | Gray | Gray | Gray |
| Features | - | - | - | - | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Powder Coated | Powder Coated | Powder Coated |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
