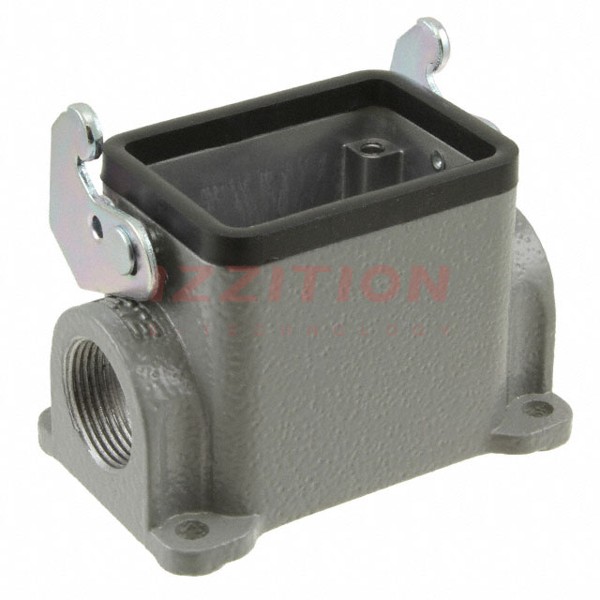

| Part Number | H6B-SGR-PG16 | H6B-SDR-PG16 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Base - Box Mount | Base - Box Mount |
| Style | Side Entry | Side Entry |
| Size | 6B | 6B |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | PG16 | PG16 |
| Size / Dimension | 3.228" L x 2.047" W x 2.402" H (82.00mm x 52.00mm x 61.00mm) | 3.228" L x 2.047" W x 2.402" H (82.00mm x 52.00mm x 61.00mm) |
| Housing Color | Gray | Gray |
| Features | - | Cover |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
