Please send RFQ , we will respond immediately.

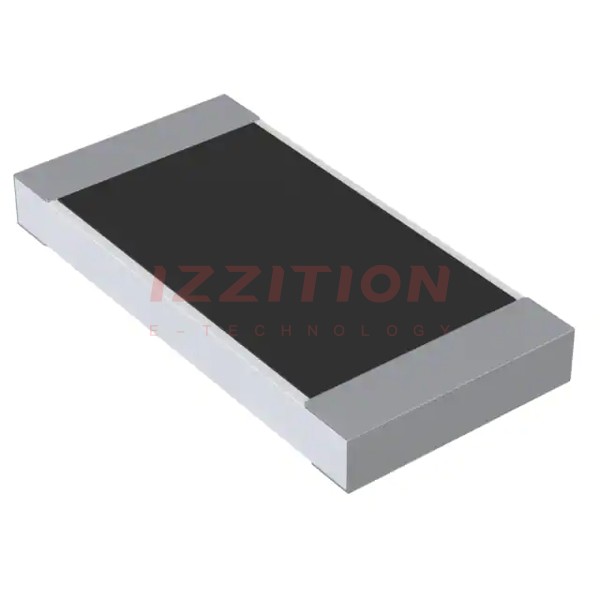

| Part Number | CRGS2010J150R | CRGS2010J15R | CRGS2010J180R | CRGS2010J100R | CRGS2010J10R | CRGS2010J120R | CRGS2010J150K |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 150 Ohms | 15 Ohms | 180 Ohms | 100 Ohms | 10 Ohms | 120 Ohms | 150 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Pulse Withstanding | Pulse Withstanding | Pulse Withstanding | Pulse Withstanding | Pulse Withstanding | Pulse Withstanding | Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±200ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) |
| Supplier Device Package | 2010 | 2010 | 2010 | 2010 | 2010 | 2010 | 2010 |
| Ratings | - | - | - | - | - | - | - |
| Size / Dimension | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) |
| Height - Seated (Max) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - |
