Please send RFQ , we will respond immediately.

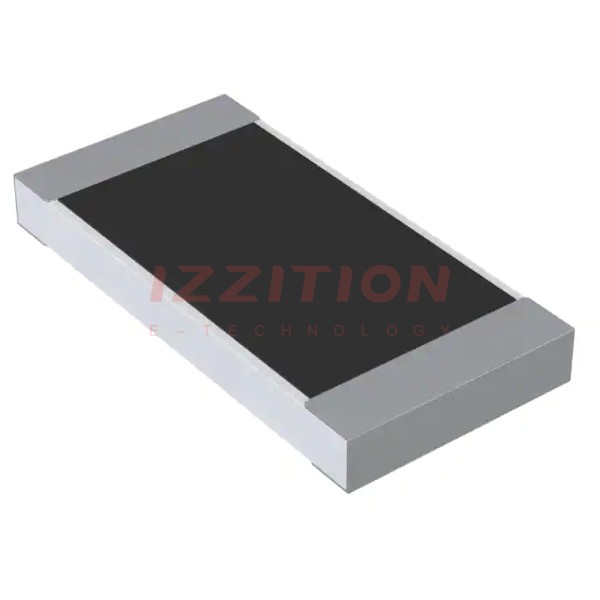

| Part Number | CRGS2010J12K | CRGS2010J12R | CRGS2010J15K | CRGS2010J18K | CRGS2010J22K | CRGS2010J82K | CRGS2010J10K | CRGS2010J120K |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 12 kOhms | 12 Ohms | 15 kOhms | 18 kOhms | 22 kOhms | 82 kOhms | 10 kOhms | 120 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Pulse Withstanding | Pulse Withstanding | Pulse Withstanding | Pulse Withstanding | Pulse Withstanding | Pulse Withstanding | Pulse Withstanding | Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) | 2010 (5025 Metric) |
| Supplier Device Package | 2010 | 2010 | 2010 | 2010 | 2010 | 2010 | 2010 | 2010 |
| Ratings | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) |
| Height - Seated (Max) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
