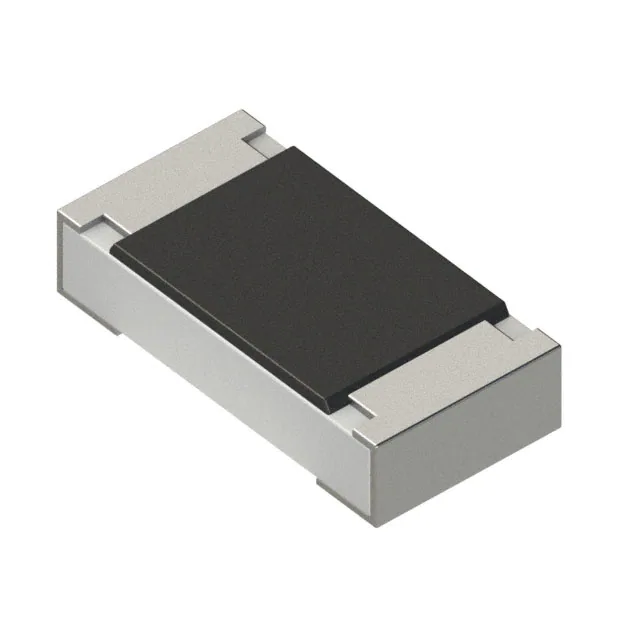

| Part Number | CRGS0603J10M | CRGS0603J10R | CRGS0603J10K |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Resistance | 10 mOhms | 10 Ohms | 10 kOhms |
| Tolerance | ±5% | ±5% | ±5% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Thick Film | Thick Film | Thick Film |
| Features | Pulse Withstanding | Pulse Withstanding | Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C | ±400ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 | 0603 |
| Ratings | - | - | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
| Number of Terminations | 2 | 2 | 2 |
| Failure Rate | - | - | - |
