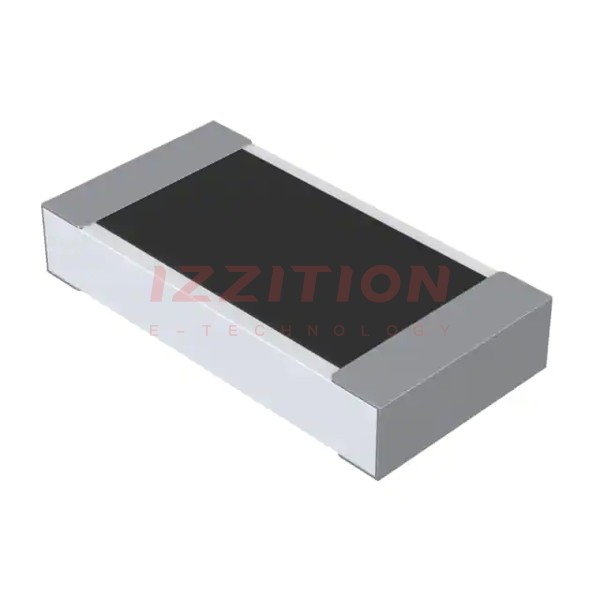

| Part Number | CRGH1206F47R | CRGH1206F47R5 | CRGH1206F487R | CRGH1206F470R | CRGH1206F475R | CRGH1206F47K |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| Product Status | Active | Active | Active | Active | Active | Active |
| Resistance | 47 Ohms | 47.5 Ohms | 487 Ohms | 470 Ohms | 475 Ohms | 47 kOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | - | - | - | - | - | - |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 |
| Ratings | - | - | - | - | - | - |
| Size / Dimension | 0.122" L x 0.061" W (3.10mm x 1.55mm) | 0.122" L x 0.061" W (3.10mm x 1.55mm) | 0.122" L x 0.061" W (3.10mm x 1.55mm) | 0.122" L x 0.061" W (3.10mm x 1.55mm) | 0.122" L x 0.061" W (3.10mm x 1.55mm) | 0.122" L x 0.061" W (3.10mm x 1.55mm) |
| Height - Seated (Max) | - | - | - | 0.026" (0.65mm) | - | 0.026" (0.65mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - |
