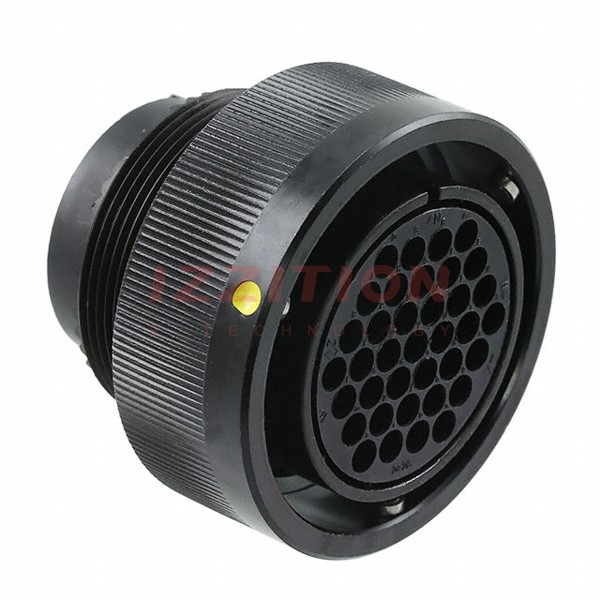

| Part Number | CIRPSE06T2821SV0N | CIRPSE06T2821PV0N |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Plug Housing | Plug Housing |
| Type | For Female Sockets | For Male Pins |
| Number of Positions | 37 | 37 |
| Shell Size - Insert | 28-21 | 28-21 |
| Shell Size, MIL | - | - |
| Contact Type | Crimp | Crimp |
| Contact Size | 16 | 16 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - |
| Fastening Type | Reverse Bayonet Lock | Reverse Bayonet Lock |
| Orientation | N (Normal) | N (Normal) |
| Primary Material | - | - |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Finish | Chromate over Zinc Cobalt | Chromate over Zinc Cobalt |
| Housing Color | Black | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - |
| Features | Coupling Nut | Coupling Nut |
| Shielding | Shielded | Shielded |
