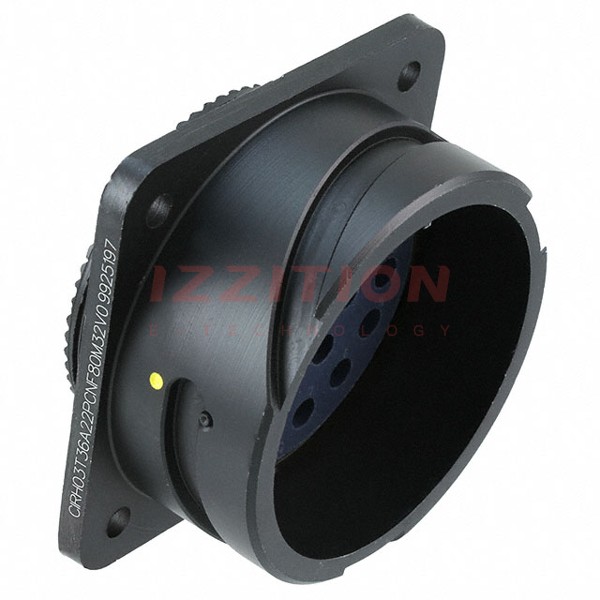

| Part Number | CIRH03T36A22PCNF80M32V0 | CIRH03T36A22SCNF80M32V0 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Discontinued at Digi-Key | Active |
| Connector Type | Receptacle Housing | Receptacle Housing |
| Type | For Male Pins | For Female Sockets |
| Number of Positions | 22 | 22 |
| Shell Size - Insert | 36-A22 | 36-A22 |
| Shell Size, MIL | - | - |
| Contact Type | Crimp | Crimp |
| Contact Size | 12 | 12 |
| Mounting Type | Panel Mount | Panel Mount |
| Mounting Feature | Flange | Flange |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Orientation | N (Normal) | N (Normal) |
| Primary Material | - | - |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Finish | Zinc Cobalt | Zinc Cobalt |
| Housing Color | Black | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - |
| Features | - | - |
| Shielding | Unshielded | Unshielded |
