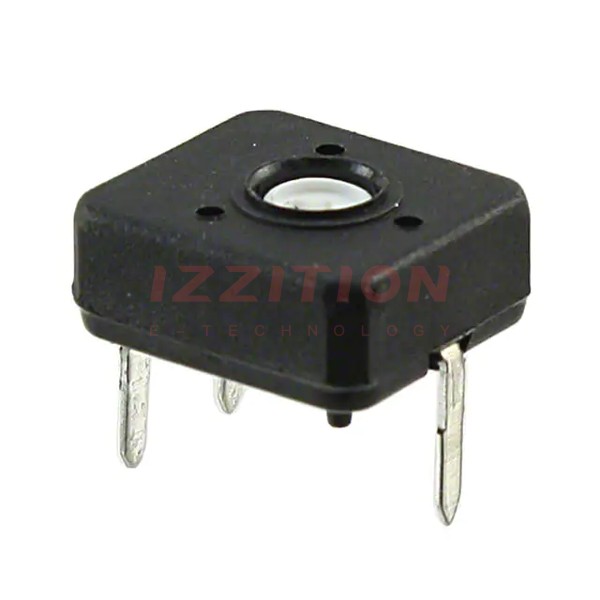

| Part Number | CB10LV471M | CB10LV472M | CB10LV473M | CB10LV474M | CB10LH471M |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Resistance | 470 Ohms | 4.7 kOhms | 47 kOhms | 470 kOhms | 470 Ohms |
| Power (Watts) | 0.15W | 0.15W | 0.15W | 0.15W | 0.15W |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient | ±500ppm/°C | ±500ppm/°C | ±500ppm/°C | ±1000ppm/°C | ±500ppm/°C |
| Number of Turns | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Side Adjustment |
| Resistive Material | Carbon | Carbon | Carbon | Carbon | Carbon |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Rectangular - 0.433" x 0.386" Face (11.00mm x 9.80mm) | Rectangular - 0.433" x 0.386" Face (11.00mm x 9.80mm) | Rectangular - 0.433" x 0.386" Face (11.00mm x 9.80mm) | Rectangular - 0.433" x 0.386" Face (11.00mm x 9.80mm) | Rectangular - 0.425" x 0.386" Face (10.80mm x 9.80mm) |
