Please send RFQ , we will respond immediately.

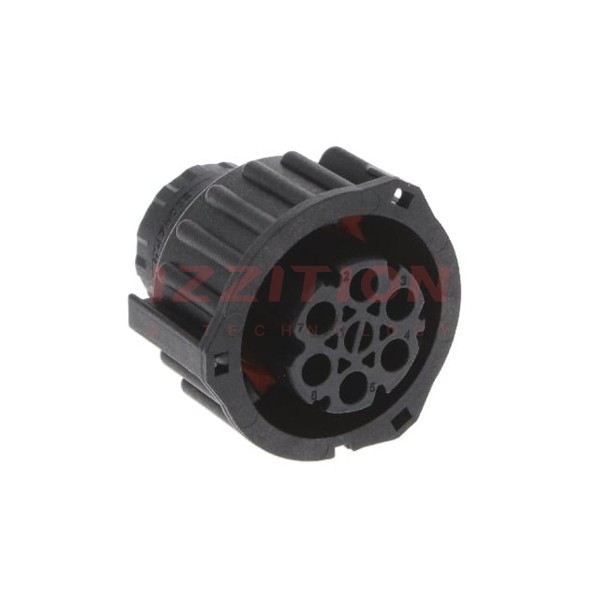

| Part Number | 967650-4 | 967650-1 | 967650-2 | 967650-3 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity Deutsch Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Plug Housing | Plug Housing | Plug Housing | Plug Housing |
| Type | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets |
| Number of Positions | 6 | 7 | 6 | 5 |
| Shell Size - Insert | - | - | - | - |
| Shell Size, MIL | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Orientation | A | A | A | A |
| Primary Material | - | - | - | - |
| Shell Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell Finish | - | - | - | - |
| Housing Color | Black | Black | Black | Black |
| Ingress Protection | IP69K - Dust Tight, High Temp Water Jets, Waterproof | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 HB | UL94 HB | UL94 HB | UL94 HB |
| Features | Coupling Nut | Coupling Nut | Coupling Nut | Coupling Nut |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
