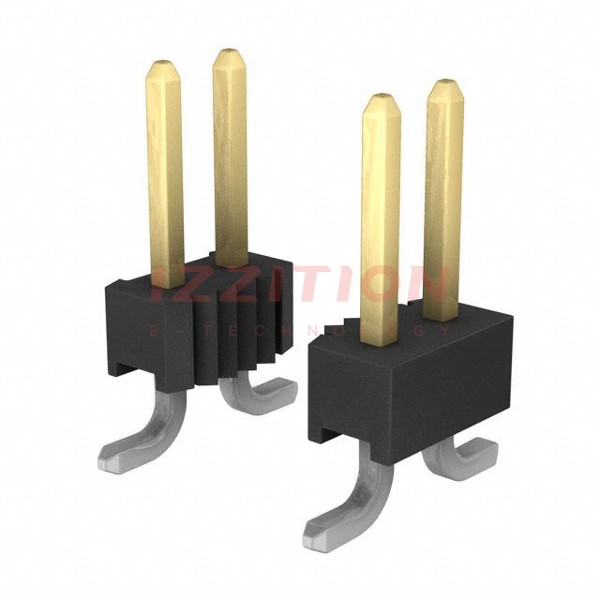

| Part Number | 966754-6 | 966754-3 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header, Breakaway | Header, Breakaway |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions | 12 | 6 |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions Loaded | All | All |
| Style | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Unshrouded | Unshrouded |
| Mounting Type | Surface Mount | Surface Mount |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Length - Mating | - | - |
| Contact Length - Post | - | - |
| Overall Contact Length | - | - |
| Insulation Height | - | - |
| Contact Shape | Square | Square |
| Contact Finish - Mating | - | - |
| Contact Finish Thickness - Mating | - | - |
| Contact Finish - Post | - | - |
| Contact Material | - | - |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Features | Pick and Place | Pick and Place |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | - | - |
| Insulation Color | Black | Black |
| Current Rating (Amps) | 5A | 5A |
| Voltage Rating | - | - |
