966658-2
  • Share:

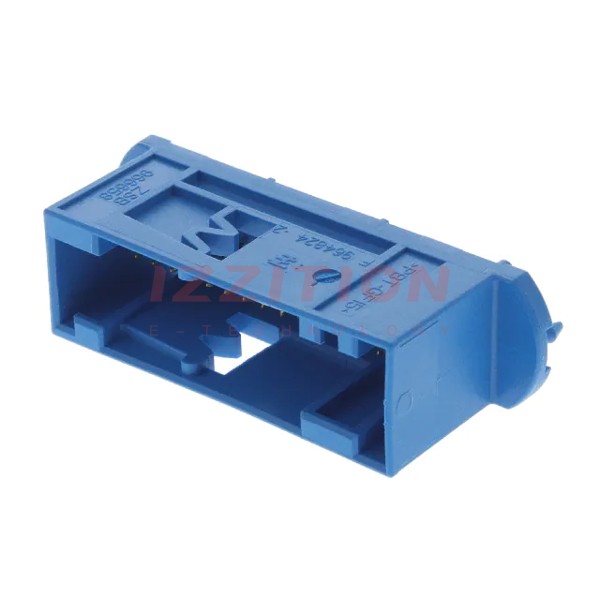

TE Connectivity AMP Connectors 966658-2

Manufacturer No:
966658-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
966658-2 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 32POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:32
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.268" (6.80mm)
Contact Length - Post:0.098" (2.50mm)
Overall Contact Length:0.520" (13.21mm)
Insulation Height:0.795" (20.20mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:78.7µin (2.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Lock
Operating Temperature:-40°C ~ 110°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Blue
Current Rating (Amps):-
Voltage Rating:12V
0 Remaining View Similar

In Stock

$2.49
14

Please send RFQ , we will respond immediately.
