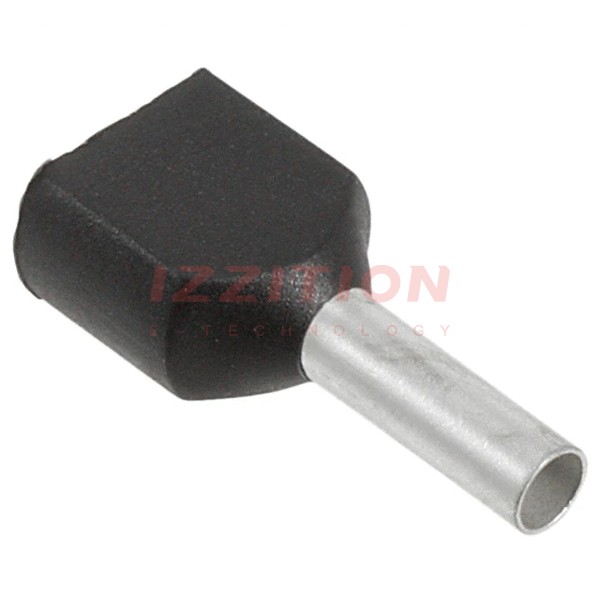

| Part Number | 966144-6 | 966144-8 | 966144-7 | 966144-1 | 966144-2 | 966144-3 | 966144-4 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Two Wire | Two Wire | Two Wire | Two Wire | Two Wire | Two Wire | Two Wire |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Style | DIN | DIN | DIN | DIN | DIN | DIN | DIN |
| Size | Two x 16 AWG (1.50mm²) | Two x 14 AWG (2.50mm²) | Two x 16 AWG (1.50mm²) | Two x 20 AWG (0.75mm²) | Two x 18 AWG (0.75mm²) | Two x 18 AWG (0.75mm²) | Two x 17 AWG (1.00mm²) |
| Length - Overall | 16.00mm | 18.50mm | 20.00mm | 15.00mm | 15.00mm | 17.00mm | 15.00mm |
| Length - Pin | 8.00mm | 10.00mm | 12.00mm | 8.00mm | 8.00mm | 10.00mm | 8.00mm |
| Color | Black | Blue | Black | White | Gray | Gray | Red |
