Please send RFQ , we will respond immediately.

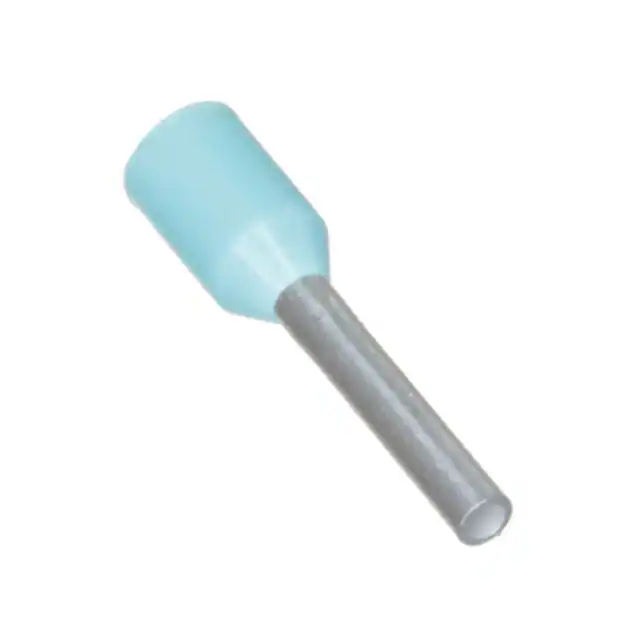

| Part Number | 966066-3 | 966067-3 | 966066-7 | 966066-5 | 966066-4 | 966066-1 | 966066-2 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Single Wire | Single Wire | Single Wire | Single Wire | Single Wire | Single Wire | Single Wire |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Style | DIN | DIN | DIN | DIN | DIN | DIN | DIN |
| Size | 22 AWG (0.34mm²) | 20 AWG (0.50mm²) | 20 AWG (0.50mm²) | 26 AWG (0.14mm²) | 22 AWG (0.34mm²) | 23 AWG (0.25mm²) | 23 AWG (0.25mm²) |
| Length - Overall | 10.00mm | 16.00mm | 14.00mm | 10.00mm | 12.00mm | 10.00mm | 12.00mm |
| Length - Pin | 6.00mm | 10.00mm | 8.00mm | 6.00mm | 8.00mm | 6.00mm | 8.00mm |
| Color | Turquoise | White | Orange | Gray | Turquoise | Blue | Blue |
