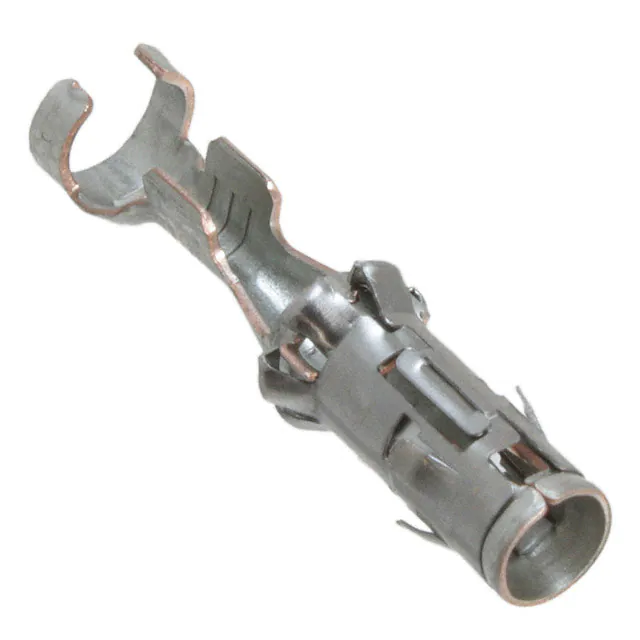

| Part Number | 962982-1 | 962952-1 | 962972-1 | 962981-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Type | Power, Stamped | Power, Stamped | Power, Stamped | Power, Stamped |
| Contact Type | Socket | Socket | Pin | Socket |
| Contact Size | 2.5mm | 4.0mm | 2.5mm | 2.5mm |
| Wire Gauge or Range - AWG | 14-16 AWG | 17-20 AWG | 13-17 AWG | 17-20 AWG |
| Wire Gauge or Range - mm² | 1.0 ~ 2.5mm² | 0.5 ~ 1.0mm² | 1.0 ~ 2.5mm² | 0.5 ~ 1.0mm² |
| Wire Gauge or Range - Coaxial | - | - | - | - |
| Contact Termination | Crimp | Crimp | Crimp | Crimp |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Tin | Tin | Tin | Tin |
| Contact Finish Thickness | 39.4µin (1.00µm) | 39.4µin (1.00µm) | 39.4µin (1.00µm) | 39.4µin (1.00µm) |
| Termination Finish | Tin | Tin | Tin | Tin |
| Features | Insulation Support | Insulation Support | Insulation Support | Insulation Support |
