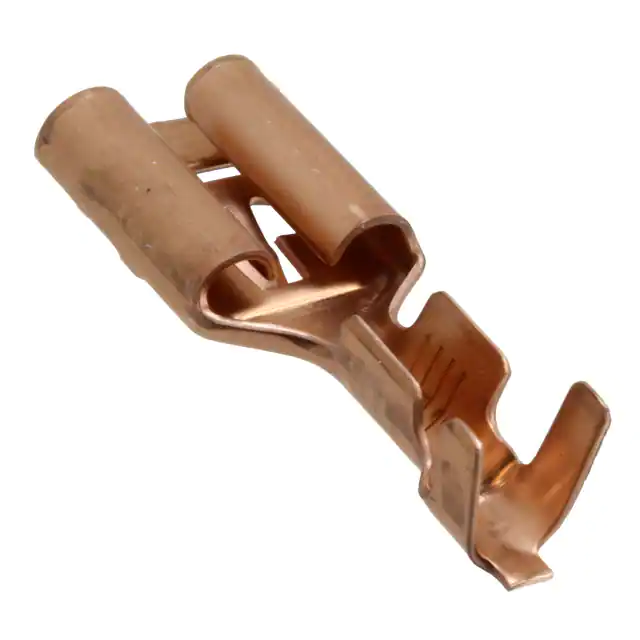

| Part Number | 962834-1 | 962835-1 | 962834-2 | 962833-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female |
| Tab Width | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) |
| Tab Thickness | 0.048" (1.22mm) | 0.048" (1.22mm) | 0.048" (1.22mm) | 0.048" (1.22mm) |
| Tab Length | 0.465" (11.80mm) | 0.465" (11.80mm) | 0.465" (11.80mm) | 0.465" (11.80mm) |
| Length - Overall | 1.063" (27.00mm) | 1.063" (27.00mm) | 1.063" (27.00mm) | 1.063" (27.00mm) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 11-13.5 AWG | 13.5-17 AWG | 11-13.5 AWG | 10-11 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | - | - | Silver | - |
