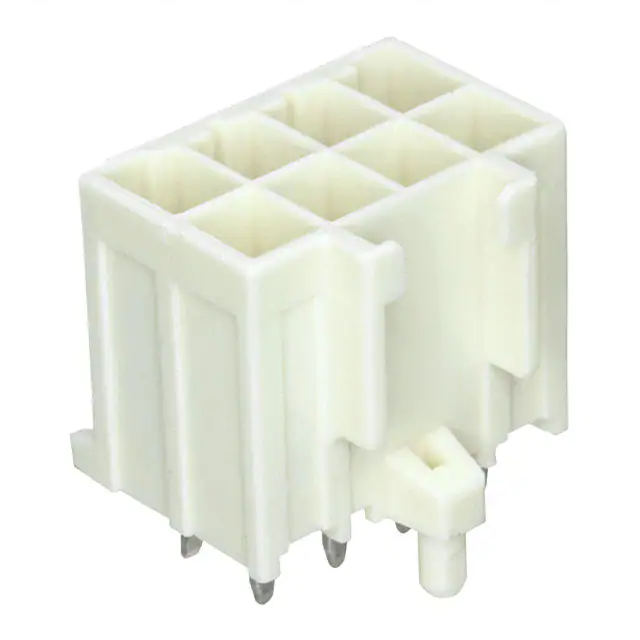

| Part Number | 917845-1 | 917895-1 | 917745-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Header | Header | Header |
| Contact Type | Tab | Male Pin | Tab |
| Pitch - Mating | 0.156" (3.96mm) | 0.098" (2.50mm) | 0.256" (6.50mm) |
| Number of Positions | 8 | 3 | 3 |
| Number of Rows | 2 | 1 | 1 |
| Row Spacing - Mating | 0.181" (4.60mm) | - | - |
| Number of Positions Loaded | All | All | 2 |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination | Kinked Pin, Solder | Kinked Pin, Solder | Kinked Pin, Solder |
| Fastening Type | Locking Ramp | Latch Holder | Locking Ramp |
| Contact Length - Mating | - | 0.185" (4.70mm) | - |
| Contact Length - Post | 0.150" (3.81mm) | 0.126" (3.20mm) | 0.150" (3.81mm) |
| Overall Contact Length | - | 0.410" (10.41mm) | - |
| Insulation Height | 0.575" (14.60mm) | 0.386" (9.80mm) | 0.575" (14.60mm) |
| Contact Shape | Rectangular | Square | Rectangular |
| Contact Finish - Mating | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - |
| Contact Finish - Post | Tin | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6 |
| Features | Board Guide | Board Guide | Board Guide |
| Operating Temperature | - | -30°C ~ 105°C | -30°C ~ 105°C |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Natural | Red | Natural |
| Current Rating (Amps) | - | 3A | Varies by Wire Gauge |
| Voltage Rating | - | 50V | - |
